Sola E-MCA0DD1001TF - 1000 Watt - Pulse Start - Metal Halide Ballast
ANSI M141 - 480/120 Volt for Auxiliary Lighting - Power Factor 90% - Max. Temp. Rating 180 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit
SKU:
BS-EMCA0DD1001TF
Details
Description

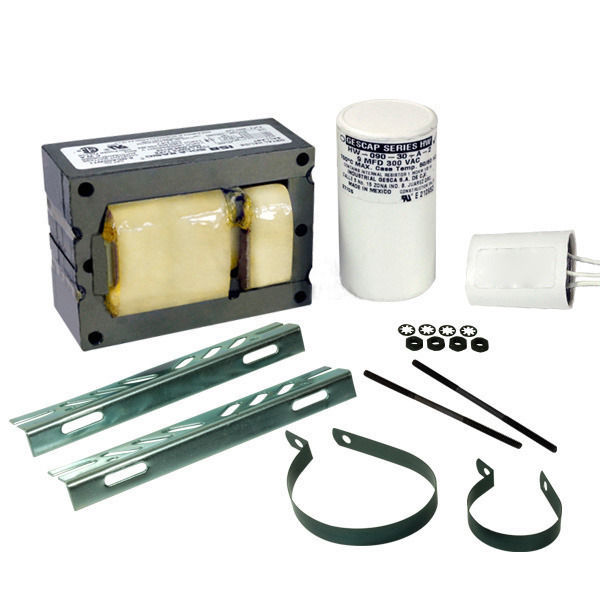

The Sola E-MCA0DD1001TF pulse start metal halide ballast operates on 480-volt systems and also comes with a 120-volt auxiliary lighting unit. For use with 1000 watt lamps, this magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 180 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.
Brochures & Spec Sheets
Product Attributes
Brand | Sola |
---|---|
MPN (Part No.) | E-MCA0DD1001TF |
Lighting Technology | Metal Halide |
ANSI Code | M141 |
UL Listed | Yes |
Wattage | 1,000 Watt |
Voltage | 480 |
Ballast Type | CWA |
Mounting | Hardware Included |
Operates | MH 1000W Pulse Start |
Start Temp. (Min) | -20 Deg. F |
Start Temp. (Max) | 212 Deg. F |
---|---|
Power Factor | 90% |
Start Method | Pulse Start |
Type | Metal Halide |
CSA Listed | Yes |
Length | 6 in. |
Height | 4.25 in. |
Width | 4.8 in. |
Weight | 23 lbs. |
Warranty | 3-Year Limited |
