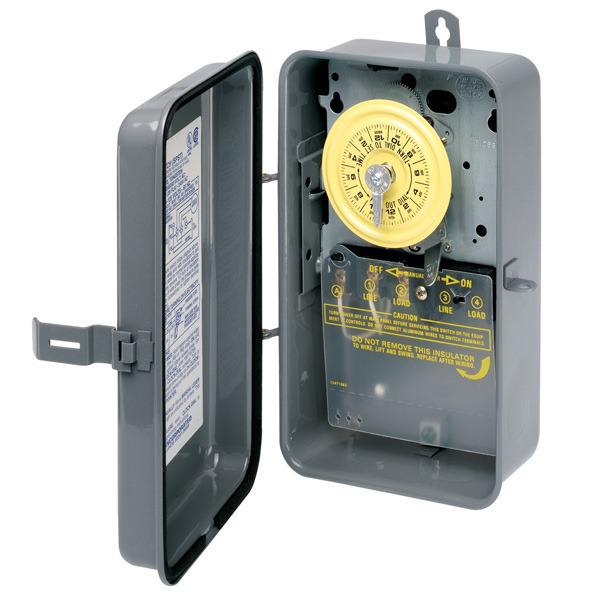

Intermatic T101R - Time Switch
24 Hr. Dial - NEMA 3R Raintight Steel Case - Gray Finish - SPST - 40 Amps - 125 Volt
SKU:
ELEC-T101R
Details
Description
This gray finish Intermatic T101R 24-hour dial time switch is designed for industrial, commercial, and residential applications and has the highest horsepower ratings in the industry for loads up to 40 amps, providing direct 24 hr. control of most loads. This dial time switch provides 1 to 12 'ON/OFF' operations each day with a minimum ON/OFF time of 1 hour and is ideal for heaters, lighting, and many other applications. This model is equipped with one 'ON' and one 'OFF' tripper.
Brochures & Spec Sheets
T100 Series Spec Sheet
Product Attributes
| Brand | Intermatic |
|---|---|
| MPN (Part No.) | T101R |
| UPC | 007827500005 |
| Voltage | 125 |
| Amperage | 40 Amps |
| Housing | Steel |
| HP Rating | 2HP |
| NEMA | 3 |
| Set Points | Up To 12 On/Off per Day |
| Sold Separately | Additional Trippers |
|---|---|
| Switch Type | SPST |
| Trippers Included | 1 ON & 1 OFF |
| CSA Listed | Certified |
| Height | 9.38 in. |
| Width | 5.5 in. |
| Depth | 3.63 in. |
| Case Quantity | 6 |
Applications
- Indoor/Outdoor Lighting
- Post Lanterns
- Signs
- Pool Heaters
- Filters
- Hydrochlorinators
- Air Conditioning
- Blowers
- Electric Fences
- Conveyers
- Pumps
- Heating/Ventilating Systems
- Music and Signal Systems
- Fans
- Poultry Foggers
