Advance IMH-50-A-LFM - 39 or 50 Watt - Metal Halide Ballast - Pulse Start - 120/277 Volt - ANSI M130 or M110 - Power Factor 100% - Max Temp Rating 85 deg C.
Additional images

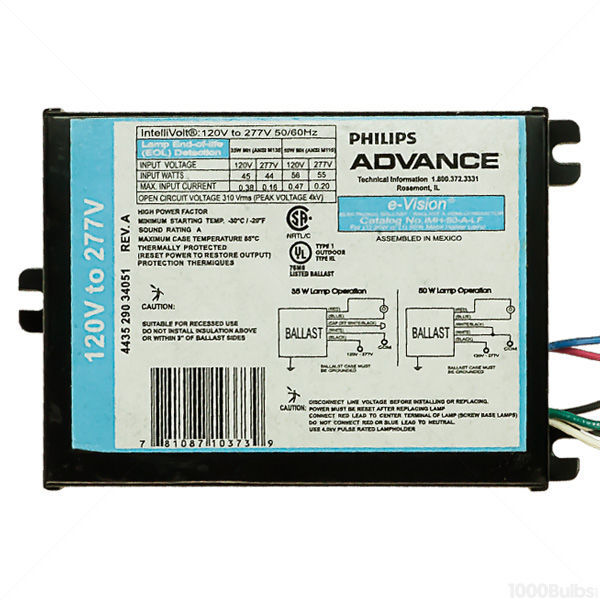

Advance e-Vision IMH-50-A-LFM

39 or 50 Watt - 120/277 Volt - Electronic Metal Halide Ballast - ANSI M130 or M110 - Side Leads With Mounting Feet


Philips Advance e-Vision electronic metal halide ballasts offer a powerful combination of bright light and energy efficiency. The Advance IMH-50-A-LFM 39 or 50 watt metal halide ballast includes Intellivolt multiple-voltage technology to deliver consistent color rendering and longer life, making it an optimal choice for retail and commercial users. For easy installation, this ballast features side exit leads and mounting feet.

Stock Code: BA-IMH50ALFM


$137.24 ea
Quantity:




Brochures & Spec Sheets

  Advance HID Brochure
  3 or 5 Year Warranty
  e-Vision Brochure

  e-Vision Sell Sheet
  Advance IMH-50-A Spec Sheet

Specifications

Stock Code:  BA-IMH50ALFM
Family:  e-Vision
UPC:  781087103739
ANSI Code:  M130 or M110
Length:  5.5 in.
Width:  3.6 in.
Mounting:  With Feet
Start Temp. (Min):  -22 Deg. F
Power Factor:  100%
Type:  Electronic Metal Halide
CSA Listed:  Yes
Warranty:  3 to 5 Years


Brand:  Advance
Part No.:  IMH-50-A-LFM
Voltage:  120/277
Ballast Type:  Electronic
Height:  1.5 in.
Leads:  Leads Out One Side
Operates:  MH39/PS or MH50/PS
Start Temp. (Max):  185 Deg. F
Start Method:  Pulse Start
Weight:  1.4 lb.
UL Listed:  Yes
Case Quantity:  1

Landscape Lighting

Related Products ( 12 ) See All


Landscape Lighting

Features

  • IntelliVolt® multiple-voltage technology enables operation at any input voltage from 120 to 277 volts, 50/60Hz
  • Compact, industry-accepted footprint
  • Electronic circuitry
  • Superior lamp wattage regulation
  • Enhances safety by preventing lamp overpowering/thermal stress and by shutting down the system should the lamp fail to ignite or cycle off at the end of life

    • A versatile new standard in electronic high intensity discharge (HID) ballast technology, e-Vision® electronic ballasts for 20-200W metal halide and high pressure sodium lamps offer users the powerful combination of bright light and enhanced energy efficiency. Through their electronic circuitry and the inclusion of exclusive Intellivolt® multiple-voltage technology, e-Vision delivers the benefits of consistent color rendering and wattage, longer life, and efficient cost of ownership and represents an optimal choice for retail, institutional, and commercial users within a broad range of applications.
