84 Watt - CFL - Wall Pack - 120/277 Volt - PLT TL106-CF-84-120/277
Additional Media

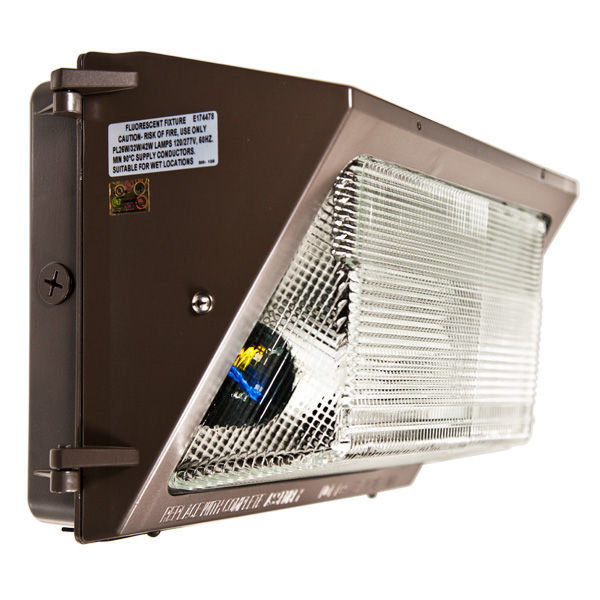

84 Watt - Compact Fluorescent - Wall Pack

120/277 Volt - PLT TL106-CF-84-120/277


The PLT TL106 Series features a durable, die-cast aluminum enclosure with an architectural bronze powder coated finish. Enclosure is fully sealed and gasketed, and is Wet Location Listed for outdoor use. Enclosure and hardware are corrosion resistant. The TL106 features an internal, anodized aluminum reflector which provides ideal light distribution, and the lamp(s) are protected by a high-impact, heat resistant borosilicate glass refractor.

Features

  • Durable, die-cast aluminum enclosure with an architectural bronze powder coated finish
  • Fully sealed and gasketed, wet location listed
  • Enclosure and hardware are corrosion resistant
  • Internal, anodized aluminum reflector
  • Lamp(s) are protected by a high-impact, heat resistant borosilicate glass refractor
  • 4-Pin Triple Tube lamps from 26 to 84 watts utilizing a GX24 universal base
  • Electronic programmed start ballast, 120/277VAC input
  • Minimum operating temperature of -20°C (-4°F)
  • “EM" option provides full 90 minutes of battery back up
  • Can be wired to a 4" junction box, or surface mounted using the 1/2" NPT conduit entry point

Specifications

Stock Code:  PLT-TL106CF84
Part No.:  TL106-CF-84-120/277
Voltage:  120/277
Bulb Shape:  T4
Number of Bulbs:  2
Height:  9.1 in.
Finish:  Bronze
Light Source:  CFL
Socket Type:  GX24q-3
Reflector Type:  Aluminum
Weight:  10 lbs.
Warranty:  1 Year


Brand:  PLT
Wattage:  84 Watt
Ballast Type:  Electronic
Bulbs Included:  Yes
Width:  14.2 in.
Depth:  7.3 in.
Housing:  Die Cast Aluminum
Number of Sockets:  2
Start Temp. (Min):  -4 Deg. F
Refractor Type:  Borosilicate Glass
UL Listed:  Wet Locations
