RAB WPLED4T78/PC | LED Wall Pack | 78 Watt
Additional Media

LED Wall Pack - 5456 Lumens - 78 Watt - 400W Equal

5000 Kelvin - Bronze Finish - RAB WPLED4T78/PC



Energy Saving Calculator

LED Replacement     Watts
Existing Lamp     Watts
Lamps Replaced
Cost per kWh
Savings over life of lamp:   $0

Energy Savings / ROI Calculator close X

Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

Original Lamp Wattage
Replacement Lamp Wattage X
Watts Saved Per Lamp =
Number of Lamps to Replace X
Total Watts Saved =
Total Kilowatts Saved =

Calculate the total kWh per year saved

Total Kilowatts Saved
Enter Hours Used Per Day X
Enter Days Used Per Week X
Enter Weeks Used Per Year X
Total kWh Saved Per Year =

Calculate the total energy cost saved per year

Total Kilowatts Saved Per Year
Energy Cost Per kWh X
Total Energy Cost Savings Per Year =

Payback on Investment

Initial Cost of Lighting Upgrade $
Total Energy Cost Savings Per Year /
Number of Months for Payback on Investment =
Savings over life of lamp =
The RAB WPLED4T78/PC high performance LED wall packs are tested and certified to levels beyond industry standards. They are Dark Sky Approved and exceed the Energy Star requirements for Color Stability during LM-80 testing. All RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it!

RAB Engineering can provide layout and energy savings assistance. Please contact your 1000Bulbs.com sales professional for assistance with these services.

Features

Specification Grade Optics: Type IV

The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90 to 270 degrees.

  • High Performance LED Light Engine
  • Maintains 70% of initial lumens at 50,000 hours
  • Weatherproof high temperature silicone gaskets
  • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins

Specifications

Stock Code:  LEDF-WPLED4T78PC
Part No.:  WPLED4T78/PC
Voltage:  120/208/240/277
CRI:  68

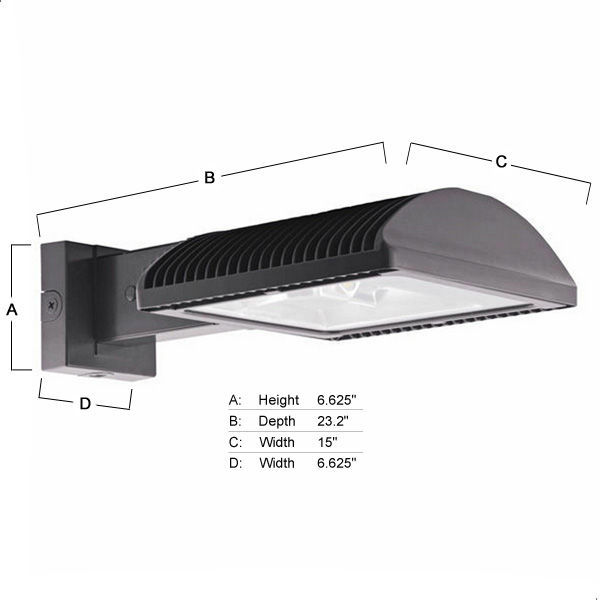

Height:  6.625 in.
Finish:  Bronze
Housing:  Die Cast Aluminum
Light Source:  LED
Lumens Per Watt:  60
Start Temp. (Min):  -40 Deg. F
Weight:  34.8 lbs.
RoHS:  Compliant
IP Rating:  IP-66
IDA Dark Sky:  Compliant


Brand:  RAB Lighting
Wattage:  78 Watt
Color Temperature:  5000 Kelvin
Width:  15 in.
Depth:  23.2 in.
Metal Halide Equal:  400 Watt
Life Hours:  100,000
Lumens (Initial):  5456
Number of LEDs:  6
Start Temp. (Max):  122 Deg. F
CA Title 24:  Compliant
UL Listed:  Wet Locations
DLC Listed:  Yes
Warranty:  5 Years
