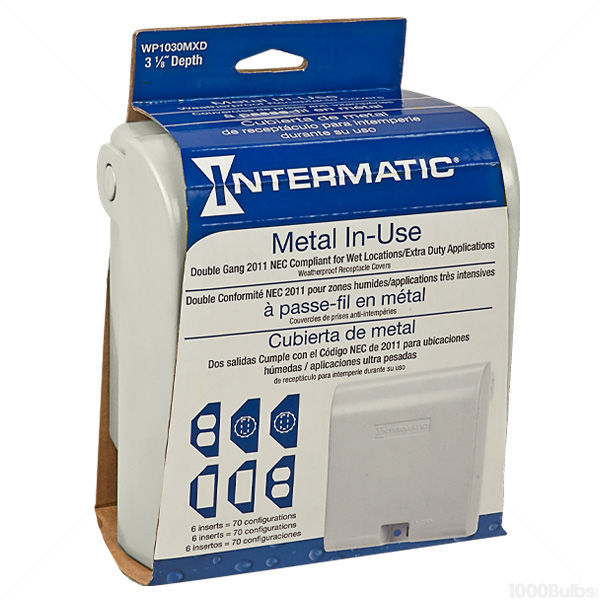

Intermatic WP1030MXD

Weatherproof Receptacle Cover - Two Gang - Die Cast Metal - 3-1/8 in. Depth

Intermatic WP1030MXD Thumbnail
Intermatic WP1030MXD Thumbnail
Intermatic WP1030MXD Thumbnail
Intermatic WP1030MXD Thumbnail
Intermatic WP1030MXD Thumbnail

Intermatic WP1030MXD

Weatherproof Receptacle Cover - Two Gang - Die Cast Metal - 3-1/8 in. Depth

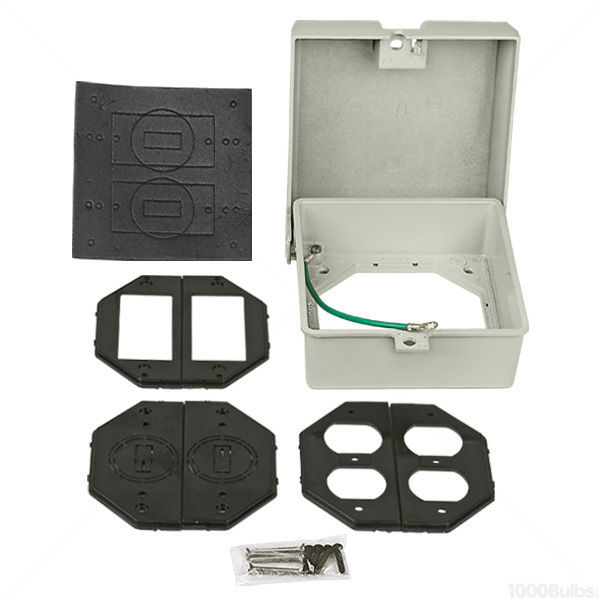

Made of die cast aluminum, the Intermatic WP1030MXD weatherproof two-gang in-use cover is ideal for vertical outdoor outlets in a wet location. Compliant with Article 406.9(B)(1) of the 2005 National Electrical Code, the polycarbonate cover fits over any pair of switches or wall outlets, while its pre-adhered neoprene gasket protects the connection from weather. The black, UV-stabilized base fits over existing wall outlets and comes with 6 snap-together, patented inserts to further seal the outlet: (2) for toggle switches, (2) for standard wall outlets, and (2) for decorator switches or outlets. Select a pair of inserts for the application, position them together, and snap them into the base.

›  View Important Details

SKU: ELEC-WP1030MXD
Product Image
An error has occurred

Not for Sale. Reference Only.

Details


Description

Made of die cast aluminum, the Intermatic WP1030MXD weatherproof two-gang in-use cover is ideal for vertical outdoor outlets in a wet location. Compliant with Article 406.9(B)(1) of the 2005 National Electrical Code, the polycarbonate cover fits over any pair of switches or wall outlets, while its pre-adhered neoprene gasket protects the connection from weather. The black, UV-stabilized base fits over existing wall outlets and comes with 6 snap-together, patented inserts to further seal the outlet: (2) for toggle switches, (2) for standard wall outlets, and (2) for decorator switches or outlets. Select a pair of inserts for the application, position them together, and snap them into the base.

Product Attributes

Brand Intermatic
MPN (Part No.) WP1030MXD
UPC 78275130142
Ratings and Certifications Indoor/UL
NEMA 3R Indoor/Outdoor
Use With Two Gang Applications
CSA Listed Yes
Length 6.31 in.
Height 3.25 in.
Width 5.75 in.
Depth 3.13 in.
Case Quantity 1
