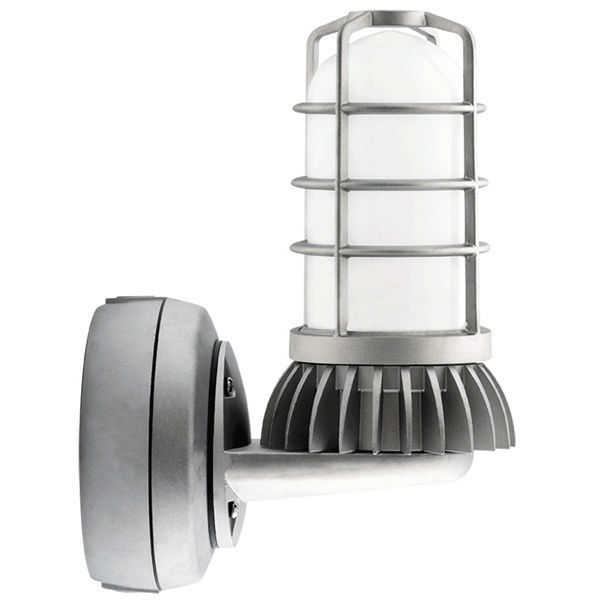

RAB VXBRLED26YDG/UP-3/4 - LED Vapor Proof Light Fixture

26 Watt - Wall Mount Fixture - 3000K Warm White - 120/208/240/277 Volt

RAB VXBRLED26YDG/UP-3/4 - LED Vapor Proof Light Fixture Thumbnail
RAB VXBRLED26YDG/UP-3/4 - LED Vapor Proof Light Fixture Thumbnail

RAB VXBRLED26YDG/UP-3/4 - LED Vapor Proof Light Fixture

26 Watt - Wall Mount Fixture - 3000K Warm White - 120/208/240/277 Volt


The RAB VXBRLED26YDG/UP-3/4 vapor proof wall fixture operates one (1) integral 26-watt LED. It includes includes a frosted glass globe with a die cast aluminum lamp guard and three (3) 3/4-inch NPS conduit entry points for mounting. It is specially designed for uplighting in non-hazardous locations where the light source requires protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors, and gases. With a 3000K color temperature, the LED fixture has an initial lumen output of 1415 lumens and can replace a 120-watt incandescent. All RAB LED fixtures come with a 5-year warranty, ensuring the entire fixture -- driver, finish, and performance -- can be counted on for years to come!

›  View Important Details

SKU: RAB-VXBRLED26YDGUP34
Product Image
An error has occurred

Not for Sale. Reference Only.

Details


Description

The RAB VXBRLED26YDG/UP-3/4 vapor proof wall fixture operates one (1) integral 26-watt LED. It includes includes a frosted glass globe with a die cast aluminum lamp guard and three (3) 3/4-inch NPS conduit entry points for mounting. It is specially designed for uplighting in non-hazardous locations where the light source requires protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors, and gases. With a 3000K color temperature, the LED fixture has an initial lumen output of 1415 lumens and can replace a 120-watt incandescent. All RAB LED fixtures come with a 5-year warranty, ensuring the entire fixture -- driver, finish, and performance -- can be counted on for years to come!

Product Attributes

Brand RAB Lighting
MPN (Part No.) VXBRLED26YDG/UP-3/4
UPC 19813041995
Lighting Technology LED
CA Title 24 Compliant
UL Listed Wet Locations
CRI Standard CRI
Color Temperature 3000 Kelvin
Life Hours 100,000
Wattage 26 Watt
Incandescent Equal 120 Watt
Lumens 1,415
Voltage 120/208/240
Finish Metallic
Housing Die Cast Aluminum
Mounting 3-3/4 in. NPS Conduit
Start Temp. (Min) -40 Deg. F
Start Temp. (Max) 104 Deg. F
Height 11.63 in.
Depth 8.5 in.
Weight 5 lbs.
Warranty 5-Year Limited

Features

  • Superior Thermal Management (Patent Pending)
  • All Die-Cast Aluminum Construction
  • 100,000 hour life based on LM-80 tests
  • Thermal Shock-Resistant Frosted Glass Globe
  • Traditional Look, Cutting-Edge Technology
  • 5-year LED warranty
