LED Flush Mount Ceiling Light - 3632 Lumens - 52 Watt - 100W Equal

5100 Kelvin - White Finish - RAB CLED2X26W

Energy Saving Calculator

LED Replacement				Watts
Existing Lamp				Watts
Lamps Replaced
Cost per kWh
Savings over life of lamp: $0

Click here to change values

Energy Savings / ROI Calculator close X

Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

Original Lamp Wattage
Replacement Lamp Wattage X
Watts Saved Per Lamp =
Number of Lamps to Replace X
Total Watts Saved =
Total Kilowatts Saved =

Calculate the total kWh per year saved

Total Kilowatts Saved
Enter Hours Used Per Day X
Enter Days Used Per Week X
Enter Weeks Used Per Year X
Total kWh Saved Per Year =

Calculate the total energy cost saved per year

Total Kilowatts Saved Per Year
Energy Cost Per kWh X
Total Energy Cost Savings Per Year =

Payback on Investment

Initial Cost of Lighting Upgrade $
Total Energy Cost Savings Per Year /
Number of Months for Payback on Investment =
Savings over life of lamp =

Rated for wet locations, the RAB CLED2X26W LED ceiling light replaces parking garage lights, HID canopy lights, and suspended linear fluorescent fixtures. This innovative 52-watt LED fixture produces 3,632 lumens (over 61 LPW), replacing a metal halide ceiling fixture of 100 watts or more! RAB's next-generation LED light engine is encapsulated within a die cast aluminum housing with a white powder coat finish. Install this LED ceiling light and forget about it, as its 100,000 life hours are backed by a 5-year warranty.

Brochures & Spec Sheets

RAB CLED2X26W Spec Sheet

RAB CLED2X26W Instruction Manual

Specifications

	Stock Code:	RAB-CLED2X26W
	Part No.:	CLED2X26W
	Voltage:	120/208/240/277
	CRI:	69

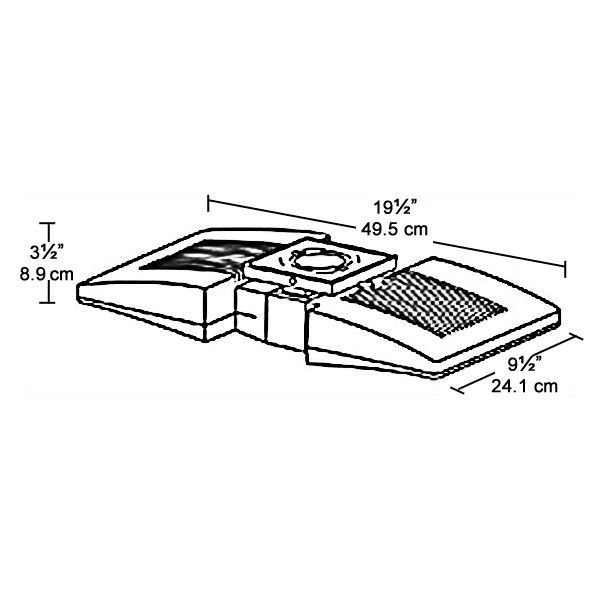

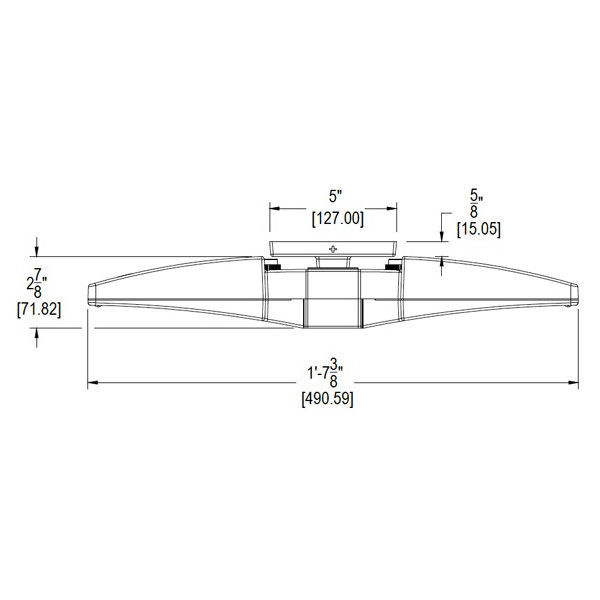

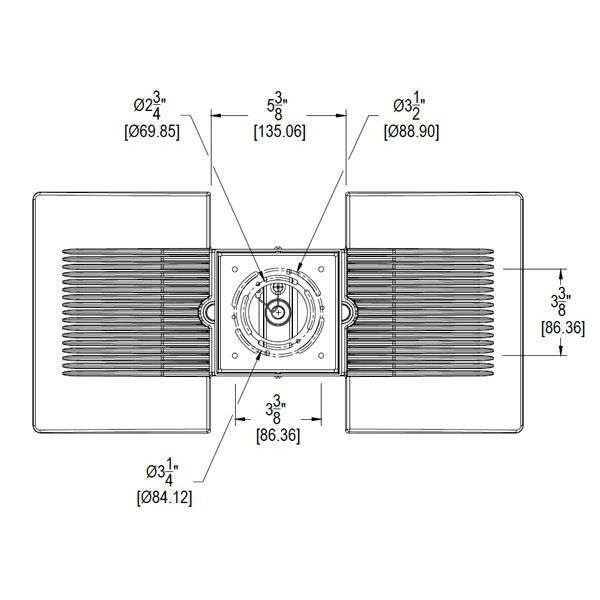

	Height:	3.5 in.
	Finish:	White
	Housing:	Die Cast Aluminum
	Light Source:	LED
	Lumens Per Watt:	70
	Start Temp. (Min):	-40 Deg. F
	Weight:	12.2 lbs.
	UL Listed:	Wet Locations

	Brand:	RAB Lighting
	Wattage:	52 Watt
	Color Temperature:	5100 Kelvin
	Width:	19.5 in.
	Depth:	9.5 in.
	Metal Halide Equal:	100 Watt
	Life Hours:	100,000
	Lumens (Initial):	3632
	Made in USA:	Yes
	Start Temp. (Max):	104 Deg. F
	CA Title 24:	Compliant
	Warranty:	5 Years
