$468.27 ea
Quantity:


LEDF-VNGL4047H4Z
LED Panels & Troffers

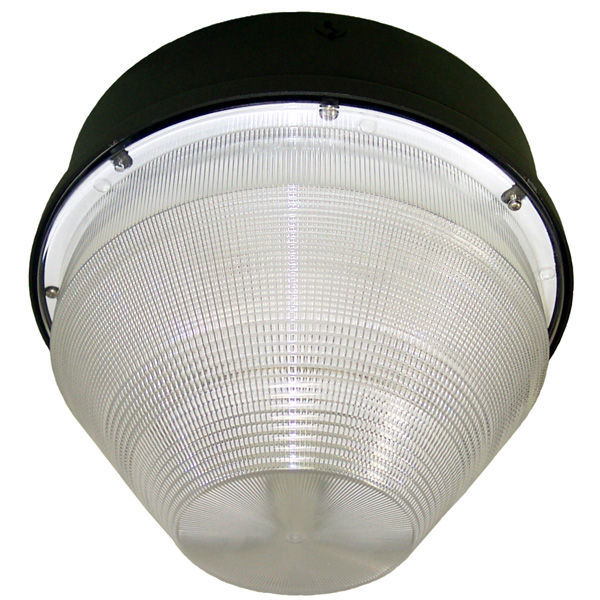

PLT VNGL40X4X7HU4Z - 30 Watt - LED - Garage Fixture
Additional Media

LED Garage Light - 3120 Lumens - 30 Watt - 100W Equal

4000 Kelvin - Bronze Finish - PLT VNGL40X4X7HU4Z



Energy Saving Calculator

LED Replacement     Watts
Existing Lamp     Watts
Lamps Replaced
Cost per kWh
Savings over life of lamp:   $0

Energy Savings / ROI Calculator close X

Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

Original Lamp Wattage
Replacement Lamp Wattage X
Watts Saved Per Lamp =
Number of Lamps to Replace X
Total Watts Saved =
Total Kilowatts Saved =

Calculate the total kWh per year saved

Total Kilowatts Saved
Enter Hours Used Per Day X
Enter Days Used Per Week X
Enter Weeks Used Per Year X
Total kWh Saved Per Year =

Calculate the total energy cost saved per year

Total Kilowatts Saved Per Year
Energy Cost Per kWh X
Total Energy Cost Savings Per Year =

Payback on Investment

Initial Cost of Lighting Upgrade $
Total Energy Cost Savings Per Year /
Number of Months for Payback on Investment =
Savings over life of lamp =
At 30 watts, PLT's VNGL40X4X7HU4Z LED garage light fixture provides continuous energy savings and is an excellent safety and security light. It is vandal resistant and includes an extended prismatic polycarbonate lens to diffuse and protect the light source. The fixture is CSA listed for wet locations and is perfect for the outdoors. Made of heavy-duty die cast aluminum, this surface mounted fixture can replace a 100-watt metal halide fixture, and is an excellent source of light in outdoor commercial and industrial environments. With a 50,000 life hour rating, this fixture will outlast any equivalent incandescent and it comes with a 3-year warranty. This garage light fixture includes four LED modules that shine with a cool white color temperature of 4000K.

Also available in a white fixture finish.

Specifications

Stock Code:  LEDF-VNGL4047H4Z
Part No.:  VNGL40X4X7HU4Z
Voltage:  120/277
CRI:  80
Diameter:  15 in.
Metal Halide Equal:  100 Watt
Life Hours:  50,000
Lumens (Initial):  3120
Number of LED Modules:  4
Start Temp. (Max):  176 Deg. F
Weight:  18 lbs.
RoHS:  Compliant
UV Protected:  Yes


Brand:  PLT
Wattage:  30 Watt
Color Temperature:  4000 Kelvin
Height:  11.25 in.
Finish:  Bronze
Housing:  Die Cast Aluminum
Light Source:  LED
Lumens Per Watt:  104
Start Temp. (Min):  -40 Deg. F
Lens:  Prismatic Polycarbonate
CSA Listed:  Wet Locations
IP Rating:  IP-66
Warranty:  3 Years
