Lutron

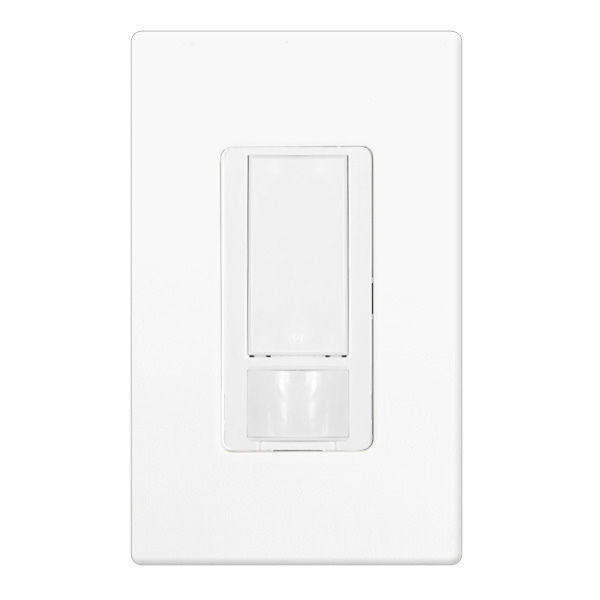

Lutron Maestro MS-OPS6M2N-DV-WH - White - Passive Infred (PIR)

Occupancy and Vacancy Sensor - 6 Amp Max. - 120-277 Volt


View More Details

Product Image
$41.28 ea.
An error has occurred
SKU: LUT-MSOPS6M2NDVWH

Lighting can be confusing! Expert Help - Call Now
1-800-624-4488

Field of View 180 Deg.
Brand Lutron
Family Maestro
MPN (Part No.) MS-OPS6M2N-DV-WH
UPC 784276012713
Case Quantity 24
Voltage 120
Color White
Coverage 900 sq. ft.
Width 2.9 in.
Height 4.7 in.
Load Type CFL/ELV/Fans/FL/Halogen/Incandescent/LED/MLV
Operation Multi-Location/Single Pole
Sold Separately Wall Plate
Time Delay 1, 5, 15, or 30 min.
CA Title 24 Compliant
Depth 1.61 in.
Warranty 5 Years
Switch Type Tap Switch
Amperage 6 Amps
Motion Detection PIR (Passive Infrared)
Motion Sensor Type Occupancy/Vacancy
Connection Neutral Wire Required
Safety Rating UL Indoor/Dry Location
CSA Listed No

Description

Lutron's MS-OPS6M2N-DV-WH Maestro switch with occupancy sensor features passive infrared sensors that automatically control the lights in a room. These sensors detect the heat from occupants moving within an area to determine when the space is occupied. This white sensor features XCT Technology, a fine motion detection system ensures that the sensor does not turn on falsely when there is no one in the room. It will control incandescent, halogen, MLV, ELV, non-dimming fluorescent, non-dimming LED, and general purpose fans. This sensor is ideal for rooms that you normally enter with full hands, such as a laundry or supply closet. Neutral wiring is required for functionality of this product. Companion switch MA-AS, MSC-AS, MA-AS-277, or MSC-AS-277 (sold separately) is required for multi-location installations. Up to 9 companion switches may be connected.
