    New LED Panels

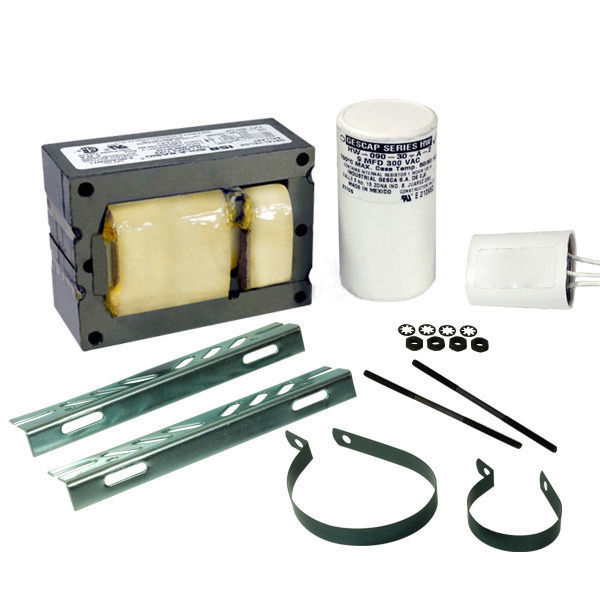

    Sola E-MCAWDD401 - 400 Watt - Pulse Start - Metal Halide Ballast Image

    Sola E-MCAWDD401 - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 5 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor and Ignitor


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    BS-EMCAWDD401
    See Similar Products

    Sola E-MCAWDD401 - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 5 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor and Ignitor

    Description

    The Sola E-MCAWDD401 pulse start metal halide ballast operates on multiple voltage systems. For use with 400-watt lamps, this magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. An insulation class temperature rating of 180 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor and ignitor.

    Comparable Products

    Sola E-MCAWDD401 - 400 Watt - Pulse Start - Metal Halide Ballast Image Electronic Sign Ballast - 2-16 ft. Total Lamp Length - (1-2 Lamps) Image Hatch MC20-1-J-277X - 20 Watt - Electronic Metal Halide Ballast Image Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Image Hatch MC20-1-F-UNNU - 20 Watt - Electronic Metal Halide Ballast Image
    Description Sola E-MCAWDD401 - 400 Watt - Pulse Start - Metal Halide Ballast Electronic Sign Ballast - 2-16 ft. Total Lamp Length - (1-2 Lamps) Hatch MC20-1-J-277X - 20 Watt - Electronic Metal Halide Ballast Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Hatch MC20-1-F-UNNU - 20 Watt - Electronic Metal Halide Ballast
    Price - $37.86 $64.13 $64.13 $67.16
    SKU BS-EMCAWDD401 BH-ESB021612UV BH-MC201J277X BH-MC201F120X BH-MC201FUNNU
    Brand Sola Hatch Hatch Hatch Hatch
    MPN (Part No.) E-MCAWDD401 ESB-0216-12-UV MC20-1-J-277X MC20-1-F-120X MC20-1-F-UNNU
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Specifications

    Brand:Sola
    MPN (Part No.):E-MCAWDD401
    ANSI Code:M135/M155
    UL Listed:Yes
    Wattage:400 Watt
    Voltage:120/208/240
    Ballast Type:CWA
    Operates:MH400/PS
    Start Temp. (Min):-20 Deg. F
    Start Temp. (Max):221 Deg. F
    Power Factor:90%
    Start Method:Pulse Start
    Type:Metal Halide
    CSA Listed:Yes
    Length:4.75 in.
    Height:4.25 in.
    Width:4.1 in.
    Weight:14 Ibs.
    Warranty:2 Years
