    Sola E-MCA0DD401TF - 400 Watt - Pulse Start - Metal Halide Ballast Image

    Sola E-MCA0DD401TF - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 480/120 Volt for Auxiliary Lighting - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    BS-EMCA0DD401TF

    Sola E-MCA0DD401TF - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 480/120 Volt for Auxiliary Lighting - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit

    Description

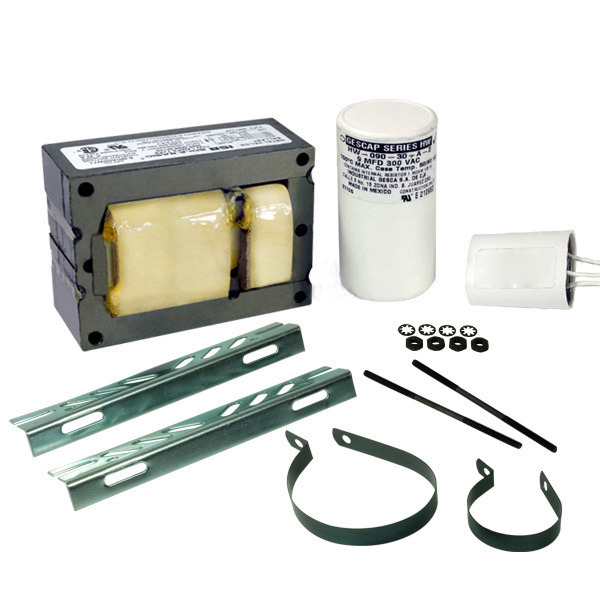

    The Sola E-MCA0DD401TF pulse start metal halide ballast operates on 480-volt systems and also comes with a 120-volt auxiliary lighting unit. For use with 400 watt lamps, this magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 212 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

    Specifications

    Brand:Sola
    MPN (Part No.):E-MCA0DD401TF
    ANSI Code:M135/M155
    UL Listed:Yes
    Wattage:400 Watt
    Voltage:480
    Ballast Type:CWA
    Mounting:Hardware Included
    Operates:MH400/PS
    Start Temp. (Min):-20 Deg. F
    Start Temp. (Max):212 Deg. F
    Power Factor:90%
    Start Method:Pulse Start
    Type:Metal Halide
    CSA Listed:Yes
    Length:4.75 in.
    Height:4.25 in.
    Width:3.7 in.
    Weight:14 Ibs.
    Warranty:3 Years
