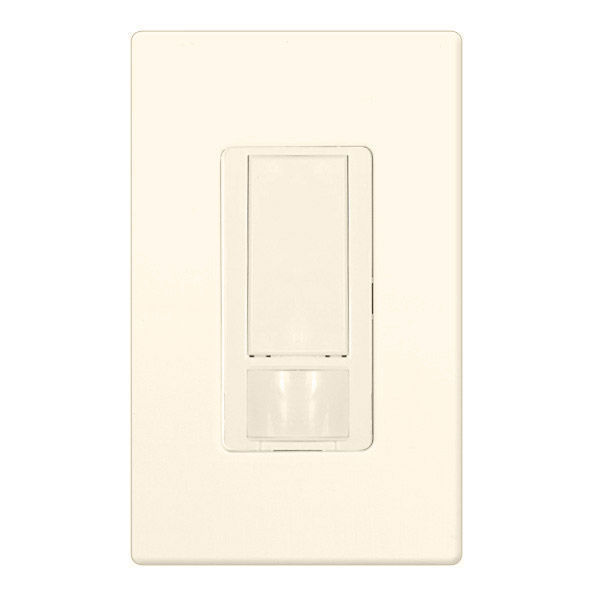

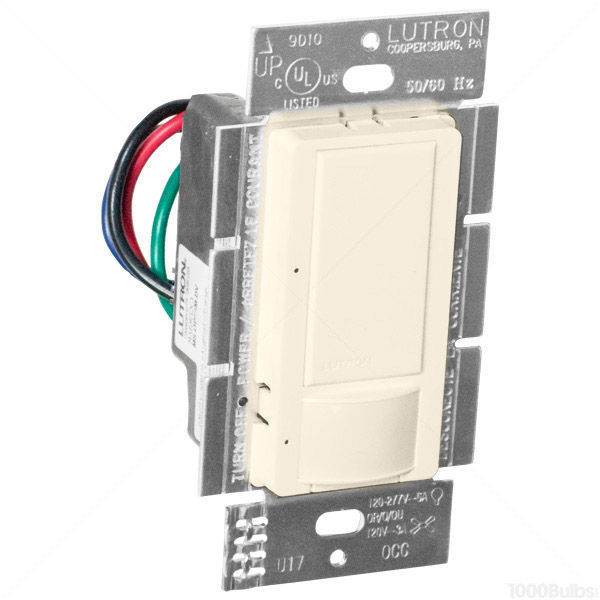

    Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR) Image
    Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR) Image

    Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR)

    Vacancy Sensor - 6 Amp Max. - 120-277 Volt - Connect to Ground or Neutral Wire


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    LUT-MSVPS6M2UDVLA
    See Similar Products

    Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR)

    Vacancy Sensor - 6 Amp Max. - 120-277 Volt - Connect to Ground or Neutral Wire

    Description

    This Lutron Maestro MS-VPS6M2U-DV-LA vacancy sensor solution ensures the lights remain on when the room is occupied and off when the room is vacant. The Lutron light almond-finished switch with passive infrared sensor saves on energy consumption throughout the year, compliments any contemporary decor, and eliminates the worry of lights being left on by mistake. Companion switch MA-AS, MSC-AS, MA-AS-277, or MSC-AS-277 (sold separately) is required for multi-location installations.

    • Manually turn lights on with tap switch/Passive infrared sensor automatically turns lights off
    • Coordinating light almond Claro wallplates sold separately
    • Up to 9 companion switches may be connected
    • Features a tamper-resistant sensor lens
    • Neutral wire or ground wire required

    Brochures & Spec Sheets

    Comparable Products

    Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR) Image Lutron Maestro MS-VPS2-WH - White - Passive Infrared (PIR)  Image Lutron Maestro MS-VPS5M-WH - White - Passive Infrared (PIR) Image Lutron Maestro MS-VPS6M2U-DV-BL - Black - Passive Infrared (PIR)  Image Lutron Maestro MS-VPS6M2-DV-IV - Ivory - Passive Infrared (PIR) Image
    Description Lutron Maestro MS-VPS6M2U-DV-LA - Almond - Passive Infrared (PIR) Lutron Maestro MS-VPS2-WH - White - Passive Infrared (PIR) Lutron Maestro MS-VPS5M-WH - White - Passive Infrared (PIR) Lutron Maestro MS-VPS6M2U-DV-BL - Black - Passive Infrared (PIR) Lutron Maestro MS-VPS6M2-DV-IV - Ivory - Passive Infrared (PIR)
    Price $30.84 $17.90 $25.58 $32.44 $32.70
    SKU LUT-MSVPS6M2UDVLA LUT-MSVPS2WH LUT-MSVPS5MWH LUT-MSVPS6M2UDVBL LUT-MSVPS6M2DVIV
    Brand Lutron Lutron Lutron Lutron Lutron
    MPN (Part No.) MS-VPS6M2U-DV-LA MS-VPS2-WH MS-VPS5M-WH MS-VPS6M2U-DV-BL MS-VPS6M2-DV-IV
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Related Products (3)

    $2.78
    An error has occurred
    Must be a number
    $4.93
    (1)
    An error has occurred
    Must be a number
    $13.82
    An error has occurred
    Must be a number

    Specifications

    Brand:Lutron
    MPN (Part No.):MS-VPS6M2U-DV-LA
    UPC:784276060578
    Family:Maestro
    Safety Rating:UL
    Color:Light Almond
    Voltage:120
    Amperage:6 Amps
    Connection:Ground/Neutral Wire Required
    Coverage:900 sq. ft.
    Field of View:180 Deg.
    Load Type:CFL/ELV/Fans/FL/Halogen/Incandescent/LED/MLV
    Motion Detection:PIR (Passive Infrared)
    Motion Sensor Type:Vacancy
    Operation:Multi-Location/Single Pole
    Sold Separately:Wall Plate
    Switch Type:Tap Switch
    Time Delay:1, 5, 15, or 30 min.
    Height:4.7 in.
    Width:2.9 in.
    Warranty:5 Years
    Case Quantity:24
