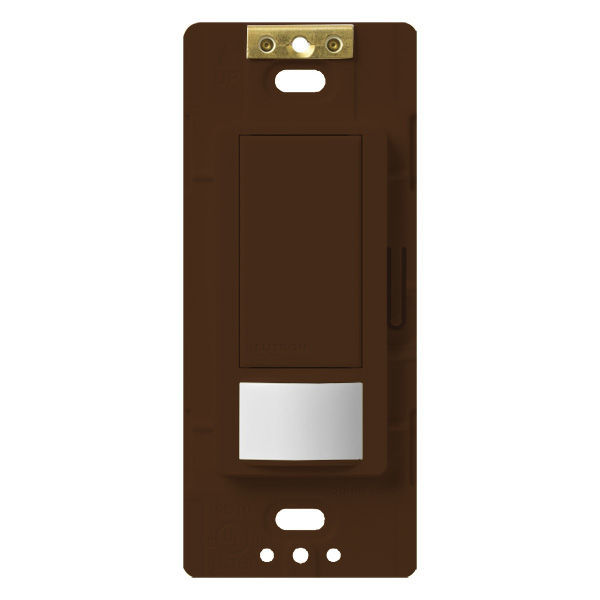

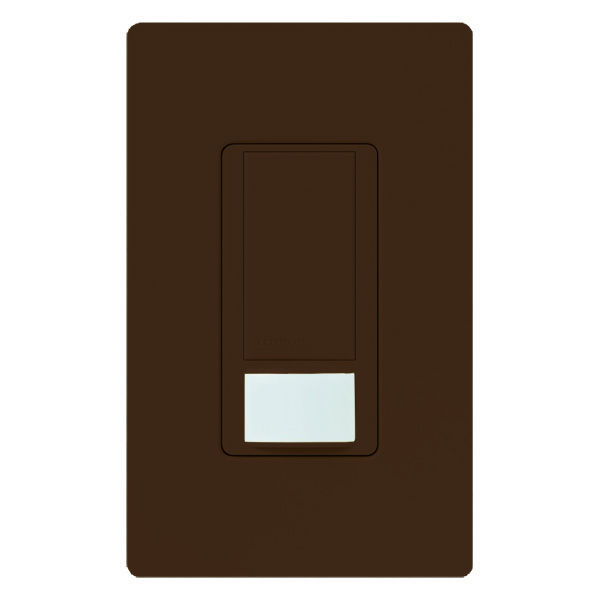

Lutron Maestro - PIR Occupancy Sensor - Brown
6 Amp. Max. - Single Pole/Multi-Location - Incandescent, Halogen, FL, CFL, LED, ELV, MLV - Connect to Ground or Neutral - 120-277 Volt - MS-OPS6M2U-DV-BR
Lutron Maestro - PIR Occupancy Sensor - Brown
6 Amp. Max. - Single Pole/Multi-Location - Incandescent, Halogen, FL, CFL, LED, ELV, MLV - Connect to Ground or Neutral - 120-277 Volt - MS-OPS6M2U-DV-BR
The Lutron Maestro MS-OPS6M2U-DV-BR occupancy sensor uses passive infrared (PIR) technology to switch lights on and off.... View More Details
Enter your zip code for inventory and delivery information.
Brochures & Spec Sheets
Lutron MS-OPS6M2U-DV-BR Spec Sheet| Brand: | Lutron |
| MPN (Part No.): | MS-OPS6M2U-DV-BR |
| UPC: | 784276060332 |
| Family: | Maestro |
| UL Listed: | Yes |
| Color: | Brown |
| Voltage: | 120 |
| Amperage: | 6 Amps |
| Connection: | Ground/Neutral Wire Required |
| Coverage: | 900 sq. ft. |
| Field of View: | 180 Deg. |
| Load Type: | CFL/Fans/FL/Halogen/Incandescent/LED |
| Motion Detection: | PIR (Passive Infrared) |
| Motion Sensor Type: | Occupancy |
| Operation: | Multi-Location/Single Pole |
| Sold Separately: | Wall Plate |
| Switch Type: | Tap Switch |
| Time Delay: | 1, 5, 15, or 30 min. |
| CSA Listed: | Yes |
| Height: | 4.69 in. |
| Width: | 2.94 in. |
| Warranty: | 5 Years |
Description
The Lutron Maestro MS-OPS6M2U-DV-BR occupancy sensor uses passive infrared (PIR) technology to switch lights on and off. The sensor switches lights on when it senses a person in the room and off after the room is empty for 1, 5, 15, or 30 minutes, depending on the setting. The Maestro sensor is suitable for most load types, such as incandescent, halogen, MLV, ELV, CFL, LED, fan, magnetic and electronic fluorescent. This product will allow you to configure the device to connect to either ground or neutral.
- Maximum amperage capacity is 6 amps and varies based on lighting loads
- Can be set to Auto-On/Auto-Off or Manual-On/Auto-Off
- Works with up to nine companion switches
- UL listedfor indoor use only
- Wallplate sold separately
- Glossy brown finish
