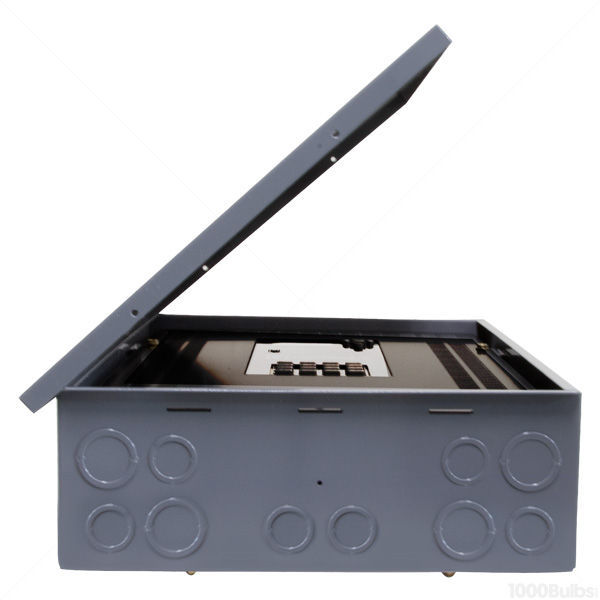

Intermatic ET91615CR Time Switch

Intermatic ET91615CR - NEMA 1 Indoor Steel Case - 16 Circuit - SPDT - 30 Amps - 120/208/240/277 Volt


The Intermatic ET91615CR 365-day astronomic time switch can be programmed to control an amazing 16 circuits with up to 4,000 events plus holiday schedules. Its 100+ hour supercapacitor ensures you'll never lose the date and time during a power outage, while the time switch's non-volatile memory will protect programming indefinitely. This timer also features USB and Ethernet connections for easy programming, even using PC tools!


  • 365-day astronomic timing
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 4,000 events plus holiday schedules
  • 30 Amp rated contacts
  • 100+ hour supercapacitor maintains date and time in case of power outage
  • USB connection for uploading, downloading and transferring of programs
  • Easy to follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware upgradable in-field via USB

Brochures & Spec Sheets


Stock Code:  ELEC-ET91615CR
Part No.:  ET91615CR
Amperage:  30 Amps
Height:  7.875 in.
Housing:  NEMA 1 Indoor Steel
Operations:  4000+
Switch Type:  SPDT
Case Quantity:  10
Brand:  Intermatic
Voltage:  120/208/240/277
Width:  5 in.
Depth:  3 in.
Number of Circuits:  16
Set Points:  4000+ ON/OFF
CSA Listed:  Yes


  • Schools, Universities
  • Hotels, Apartment Complexes, Condominiums, Dormitories
  • Retail Stores, Convenience Stores, Gas Stations, Shopping Plazas
  • Restaurants, Fast Food Facilities
  • Offices, Factories, Airports
  • Banks and ATMs
  • Hospitals, Health Clinics
  • Property Management
  • Parking Lot Lighting, Parking Garages
  • Security Systems, Perimeter Lighting, Access Ways, Walkways, Driveways
  • HVAC/R
  • Agricultural Facilities
  • Parks, Atriums
  • Correctional Facilities
  • Specialty Applications
