    LEDF-T1U12V60L
    LED Panels & Troffers
    Product Video
    LED Driver - 12 Volt - 0-60 Watt Image

    LED Driver - 12 Volt - 0-60 Watt

    Input 100-277V - For Constant Voltage Products Only - Fulham T1UNV012V-60L


    Product Image
    $42.51 ea
    An error has occurred
    LEDF-T1U12V60L

    LED Driver - 12 Volt - 0-60 Watt

    Input 100-277V - For Constant Voltage Products Only - Fulham T1UNV012V-60L

    Comparable Products

    LED Driver - 12 Volt - 0-60 Watt Image LED Driver - 12 Volt - 1-12  Watts Image LED Driver - 12 Volt - 6-60 Watts Image LED Driver - Dimmable - 12 Volt - 6-60 Watts Image LED Driver - 12 Volt - 10-60 Watts Image
    Description LED Driver - 12 Volt - 0-60 Watt LED Driver - 12 Volt - 1-12 Watts LED Driver - 12 Volt - 6-60 Watts LED Driver - Dimmable - 12 Volt - 6-60 Watts LED Driver - 12 Volt - 10-60 Watts
    Price $42.51 $12.74 $22.77 $23.60 $80.96
    SKU LEDF-T1U12V60L LEDF-ACA12V12H10M LEDF-ACA60V12H50 LEDF-ACA60VD12H50 BA-LED120A0012V50F
    Brand Fulham AC Electronics AC Electronics AC Electronics Advance
    MPN (Part No.) T1UNV012V-60L AC-A12V12H1.0M AC-A60V12H5.0 AC-A60VD12H5.0 LED120A0012V50FM
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Brochures & Spec Sheets

    Description

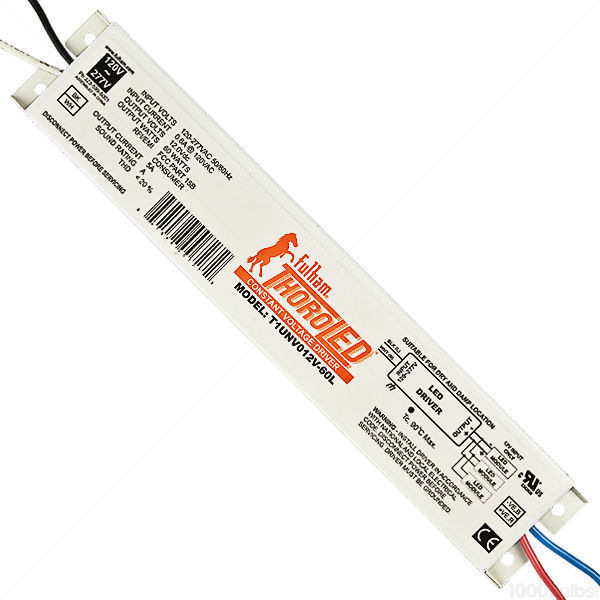

    The Fulham ThoroLED T1UNV012V-60L LED Driver operates with a maximum power rating of 60 watts and is suitable for signage/channel letters, under-cabinet, sconce, refrigerated cases, recessed ceiling fixtures, and pathway applications. Reliable and flexible, this high efficiency LED driver is backed by a 5 year warranty.

    • For use with constant current, high power LEDs
    • Input voltage range of 100-277V
    • Suitable for damp environments
    • Input frequency of 50-60Hz
    • Output voltage of 12DC

    Professional Installation Recommended

    Specifications

    Brand:Fulham
    MPN (Part No.):T1UNV012V-60L
    Family:ThoroLED
    CE Certified:Yes
    UL Listed:Damp Locations
    Life Hours:50,000
    Maximum Wattage:60 Watt
    Channels:1
    Input Voltage:100/277
    Mounting:Side Leads
    Material:Metal
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):194 Deg. F
    Output Current:5 Amps Max
    Output Voltage:12 Volt
    Efficiency:up to 85%
    Power Factor:0.90
    THD:20%
    UL Class 2:Yes
    Length:9.5 in.
    Height:1.2 in.
    Width:1.7 in.
    Warranty:5 Years
