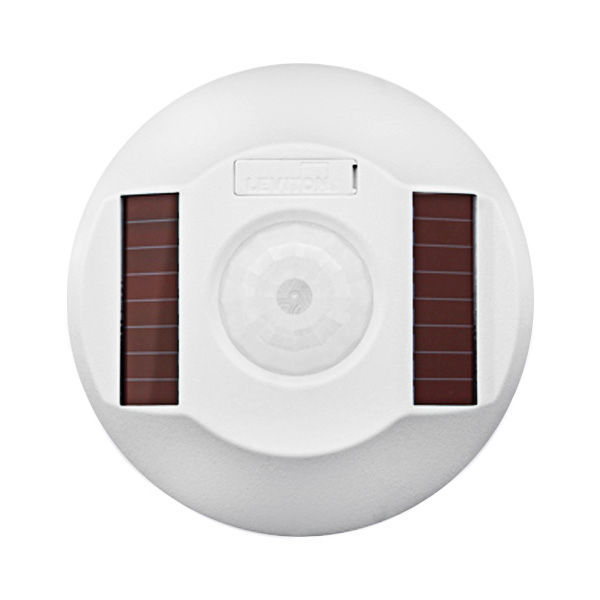

Leviton LevNet WSC15-IRW - 360 Deg. Self-Powered Wireless PIR Occupancy Sensor Thumbnail
Leviton LevNet WSC15-IRW - 360 Deg. Self-Powered Wireless PIR Occupancy Sensor Thumbnail

Leviton LevNet WSC15-IRW - 360 Deg. Self-Powered Wireless PIR Occupancy Sensor

40-1000 LUX - For Use with LevNet RF Receivers - 1500 sq. ft. Coverage - White


View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: LEV-WSC15IRW

Brand Leviton
MPN (Part No.) WSC15-IRW
UPC 078477510674
Battery Life 10 Years
Family LevNet RF
Color White
Mounting Ceiling Mount
Warranty 5 Years
Coverage 1500 sq. ft.
Sold Separately LevNet RF Receivers
CA Title 24 Compliant
Diameter 4.8 in.
Height 1.2 in.
Motion Detection PIR (Passive Infrared)
Motion Sensor Type Occupancy
Field of View 360 Deg.
Minimum Light Required 4FC (40 LUX)
Safety Rating UL Indoor/Dry Location

Description

The Leviton WSC15-IRW wireless occupancy sensor responds to any source of heat within the range of detection, including heat emitted by a human body. It is battery free and can operate in total darkness for up to 48 hours. Batteries can be added as an option for applications without available ambient light. For improved detection, the sensors use an enhanced PIR element located directly behind a unique multi-zone optical lens. This occupancy sensor as a total coverage of 1500 square feet and is Title 24 Compliant. The wireless receivers and transmitters are not included.
