25 Watt - Aircraft Navigation Light - T3.5 Thumbnail

25 Watt - Aircraft Navigation Light - T3.5

Halogen - DC Bayonet Base - 28 Volt - PLT 692

View More Details

Product Image
An error has occurred
Sold Out

Brand PLT
Order Code Q25T3.5/DC/28V
Base Type DC Bayonet (BA15d)
Bulb Shape T3.5
Bulb Type Halogen
Case Quantity 2000
Filament Type CC-6
Light Source Halogen
Type Aircraft Navigation Light
ANSI Code 692
Life Hours 800
Wattage 25 Watt
Color Temperature 4200 Kelvin
Length 1.5 in.
Diameter 0.42 in.
Beam Angle 360 Degree
Lumens 500
Voltage 28

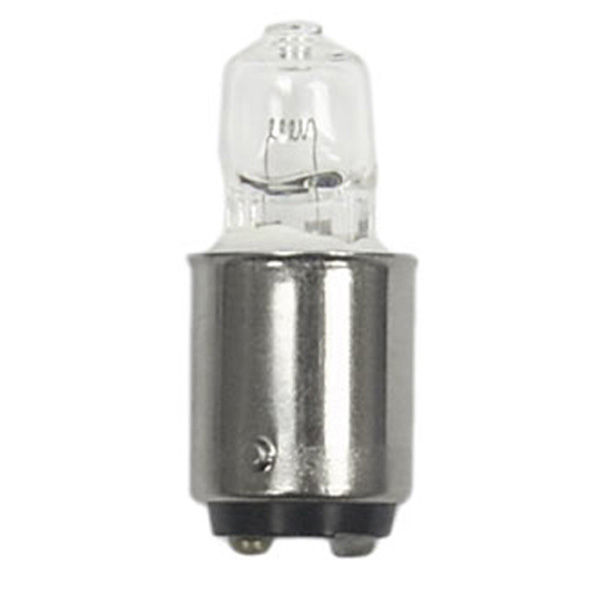

The PLT 692 25-watt T3.5 miniature halogen lamp is primarily used as an aircraft navigation light. Producing 500 lumens and with a 360-degree beam angle, this 28-volt double contact bayonet base bulb has a long-life filament that will last up to 800 hours and a 4200K cool white color temperature.
