100 Watt - PAR36 - Spot - Aircraft Navigation Light

Halogen - Screw Terminal Base - 28 Volt - PLT 4594

100 Watt - PAR36 - Spot - Aircraft Navigation Light Thumbnail
100 Watt - PAR36 - Spot - Aircraft Navigation Light Thumbnail
100 Watt - PAR36 - Spot - Aircraft Navigation Light Thumbnail

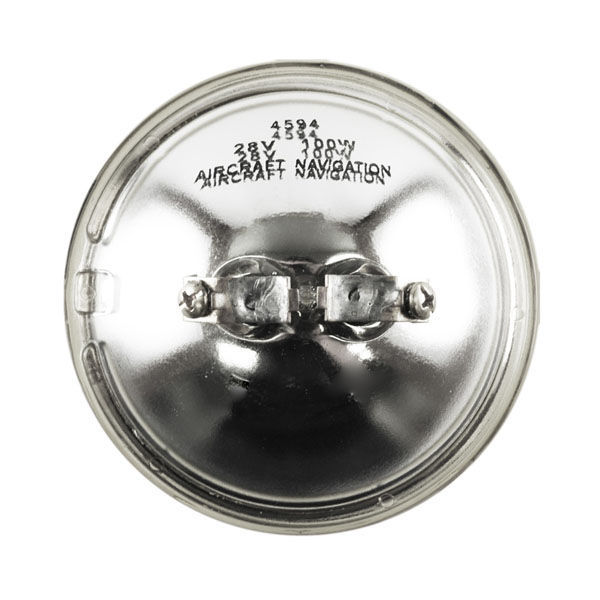

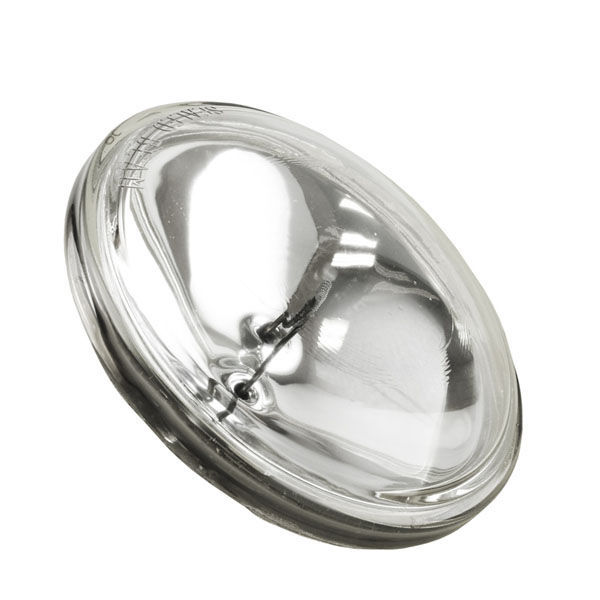

100 Watt - PAR36 - Spot - Aircraft Navigation Light

Halogen - Screw Terminal Base - 28 Volt - PLT 4594


Operating at 28 volts, this PLT 4594 100-watt PAR36 aviation lamp is suitable to replace existing navigation light systems. The halogen lamp features a maximum candle power of 70,000 with a 7-degree vertical beam spread and a 13-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

›  View Important Details

SKU: AIRL-4594
Product Image
An error has occurred

Sold Out

Details


Description

Operating at 28 volts, this PLT 4594 100-watt PAR36 aviation lamp is suitable to replace existing navigation light systems. The halogen lamp features a maximum candle power of 70,000 with a 7-degree vertical beam spread and a 13-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

Product Attributes

Brand PLT
MPN (Part No.) 4594
Lighting Technology Halogen
Bulb Shape PAR36
Life Hours 300
Wattage 100 Watt
CB Candlepower 70,000
Voltage 28
NSN 6240-00-484-5947
Horiz Beam Spread
Vert Beam Spread 7 Degree
Base Type Screw Terminal
Filament Type CC-6
Type Aircraft Navigation Light
Length 2.4 in.
Diameter 4.4 in.
Case Quantity 12
