PLT

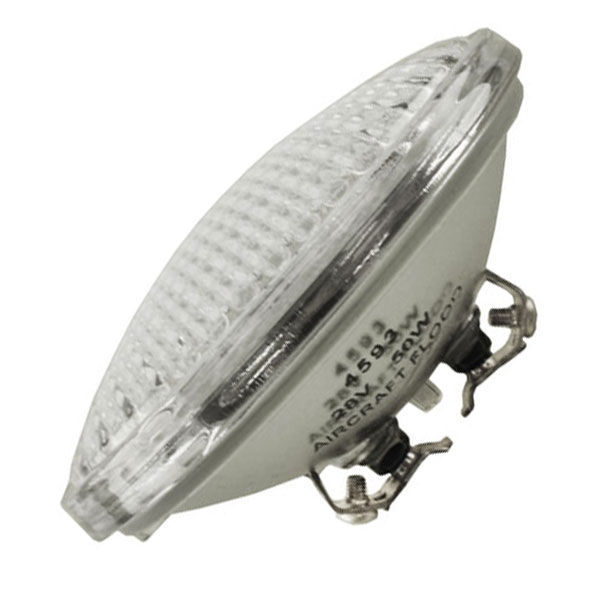

50 Watt - PAR36 - Flood - Aircraft In-Air Refueling Light

Halogen - Screw Terminal Base - 28 Volt - PLT 4593


View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: AIRL-4593

Brand PLT
MPN (Part No.) 4593
NSN 6240-00-132-5317
Base Type Screw Terminal
Beam Angle Flood
Bulb Shape PAR36
Case Quantity 12
CB Candlepower 1,500
Filament Type CC-6
Light Source Halogen
Type In-Air Refueling Light
Life Hours 400
Wattage 50 Watt
Length 2.4 in.
Diameter 4.4 in.
Horiz Beam Spread 80 Degree
Vert Beam Spread 30 Degree
Voltage 28

Description

Operating at 28 volts, this PLT 4593 50-watt PAR36 aviation lamp is primarily used as a aircraft in-air refueling light. The halogen lamp features a maximum candle power of 1,500 with a 30-degree vertical beam spread and a 80-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.
