    LEDF-AC40CD14UVQS
    New LED Panels

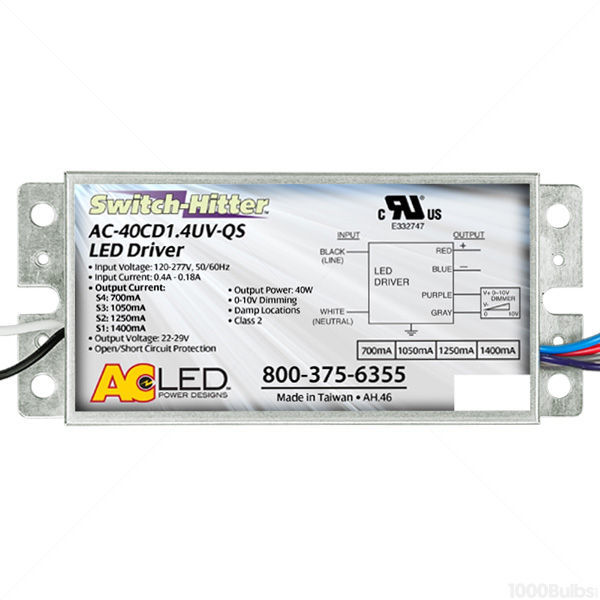

    LED Driver - Dimmable - 29 Volt - 20-40 Watts - 700-1400mA Output Current Image

    LED Driver - Dimmable - 29 Volt - 20-40 Watts - 700-1400mA Output Current

    120-277V Input - 24-29V Output - For Constant Current Products Only - AC Electronics AC-40CD1.4UV-QS


    Product Image
    $25.06 ea
    An error has occurred
    LEDF-AC40CD14UVQS

    LED Driver - Dimmable - 29 Volt - 20-40 Watts - 700-1400mA Output Current

    120-277V Input - 24-29V Output - For Constant Current Products Only - AC Electronics AC-40CD1.4UV-QS

    Description

    AC Electronics Switch-Hitter Constant Current LED drivers feature an on-board current selection that includes adjustable current switching and dimming capabilities. The AC-40CD1.4UV-QS 40-watt driver offers up to four different output currents: 700, 1050, 1250, or 1400mA. With a life rating of up to 100,000 hours, this driver is a consistent and efficient solution for your LED lighting system.

    • Suitable for environements with dust and jets of water
    • For use with constant current, high power LEDs
    • Input voltage range of 120-277VAC
    • Output power range of 20-40 Watts
    • Output voltage range of24-29VDC
    • Input frequency of 50-60Hz

    Professional Installation Recommended

    Comparable Products

    LED Driver - Dimmable - 29 Volt - 20-40 Watts - 700-1400mA Output Current Image LED Driver - 50 Watt - 1500mA Output Current Image LED Driver - 1-12 Watts - 350mA Output Current Image LED Driver - Dimmable - 15-32 Watts - 15-32W - 500-1050 Output Current Image LED Driver - Dimmable - 36 Volt - 25-50 Watts - 700-1400 Output Current Image
    Description LED Driver - Dimmable - 29 Volt - 20-40 Watts - 700-1400mA Output Current LED Driver - 50 Watt - 1500mA Output Current LED Driver - 1-12 Watts - 350mA Output Current LED Driver - Dimmable - 15-32 Watts - 15-32W - 500-1050 Output Current LED Driver - Dimmable - 36 Volt - 25-50 Watts - 700-1400 Output Current
    Price $25.06 $16.72 $19.33 $23.96 $26.37
    SKU LEDF-AC40CD14UVQS PLT-10703 LEDF-LCA012LU LEDF-AC32CD105AQBAW LEDF-AC50CD14UVTS
    Brand AC Electronics Sosen Hatch AC Electronics AC Electronics
    MPN (Part No.) AC-40CD1.4UV-QS SS-50R-36 LCA012-L-UNI AC32CD1.05AQBAW AC-50CD1.4UV-TS
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Specifications

    Brand:AC Electronics
    MPN (Part No.):AC-40CD1.4UV-QS
    Family:Switch Hitter
    Dimmable:Yes
    IP Rating:IP-66
    Safety Rating:Not Applicable
    Life Hours:100,000/50,000
    Maximum Wattage:40 Watt
    Minimum Wattage:20 Watt
    Input Voltage:120/277
    Mounting:Side Leads
    Start Temp. (Min):-40 Deg. F
    Output Voltage:22-29 Volt
    Efficiency:up to 84%
    Power Factor:0.95
    Length:6.5 in.
    Height:1.18 in.
    Width:2.9 in.
    Weight:0.8 lb.
    Warranty:5 Years
    Case Quantity:40
