Magnetic Sign Ballast - 24-48 ft. Total Lamp Length - (4-6 Lamps)
277 Volt - Sola E-620-T-45688110-TP
SKU:
BS-E620T45688110TP
Details
Description

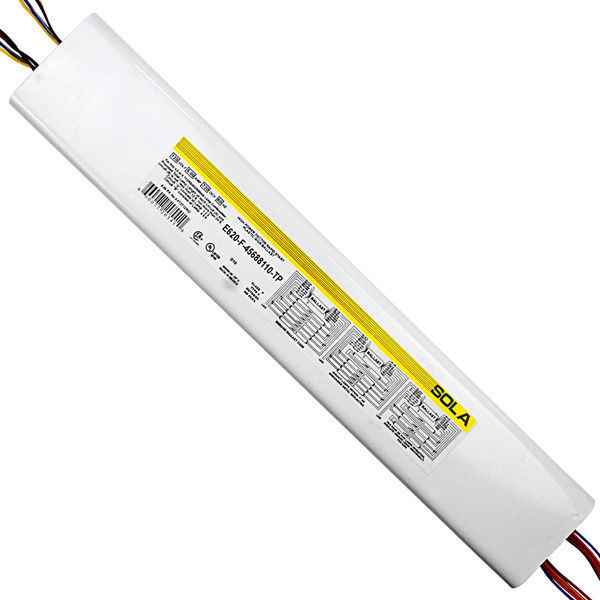

With an input voltage of 277 volts, the Sola E-620-T-45688110-TP fluorescent sign ballast operates four to five F72T12/HO lamps or four to six F96T12/HO lamps. This rapid start ballast has a maximum wattage rating of 580 watts and can operate up to 48 feet of fluorescent lighting. CSA and UL listed, this ballast is perfect for operating external lighting for office lots or signs as well as indoor lighting for large rooms.
Brochures & Spec Sheets
Sola E-620-T-45688110-TP Spec Sheet
Product Attributes
| Brand | Sola |
|---|---|
| MPN (Part No.) | E-620-T-45688110-TP |
| Lighting Technology | Fluorescent |
| UL Listed | Type 2 Outdoor |
| Voltage | 277 |
| Ballast Factor | 0.87/0.88 |
| Lamps Operated | (6) Lamps |
| Lamp Footage (Max) | 48 ft. |
| Lamp Footage (Min) | 24 ft. |
| Start Temp. (Min) | -20 Deg. F |
| Power Factor | 99% |
|---|---|
| Start Method | Rapid Start |
| THD | 18% |
| CSA Listed | Yes |
| Length | 19.19 in. |
| Height | 2.66 in. |
| Width | 3.19 in. |
| Weight | 21 Ibs. |
| Warranty | 3-Year Limited |
