LED Canopy Light - 2329 Lumens - 28 Watt - 165W Equal
4660 Kelvin - Bronze Finish - AC Electronics AC012/36/350EX2
SKU:
LEDF-AC01236350EX2
No pricing information found.
Details
Description
Save energy and prevent light pollution with the AC Electronics AC012/36/350EX2 LED retrofit canopy light kit. Using only 28 watts, this fixture produces 2329 lumens, the equivalent of a 165-watt metal halide fixture. The Grandlite SM012 housing encloses 20 Cree XP-G2 LEDs mounted to an industrial-grade aluminum LED driver bracket. Simply wire the canopy light to an existing junction box in under 10 minutes for 50,000 hours of energy-saving commercial lighting. This RoHS compliant fixture carries a 5-year warranty. The AC012/36/350EX2 is approved for use with the Tork 2107 photocell.
Brochures & Spec Sheets
AC Electronics AC012/36/350EX2 Spec Sheet
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | AC012/36/350EX2 |
| Lighting Technology | LED |
| Family | Minuteman 5 |
| CRI | Standard CRI |
| Color Temperature | 5000 Kelvin |
| Life Hours | 50,000 |
| Wattage | 28 Watt |
| LPW | 83 |
| Lumens | 2,329 |
| Voltage | 120 |
| Finish | Bronze |
| Metal Halide Equal | |
|---|---|
| Housing | Die Cast Aluminum |
| Made in USA | Yes |
| Start Temp. (Min) | -40 Deg. F |
| Start Temp. (Max) | 110 Deg. F |
| Power Factor | 97% |
| THD | 2.2% |
| Height | 8.9 in. |
| Width | 12.4 in. |
| Depth | 12.4 in. |
| Weight | 8 lbs. |
| Warranty | 5-Year Limited |
Features
Kit Includes:

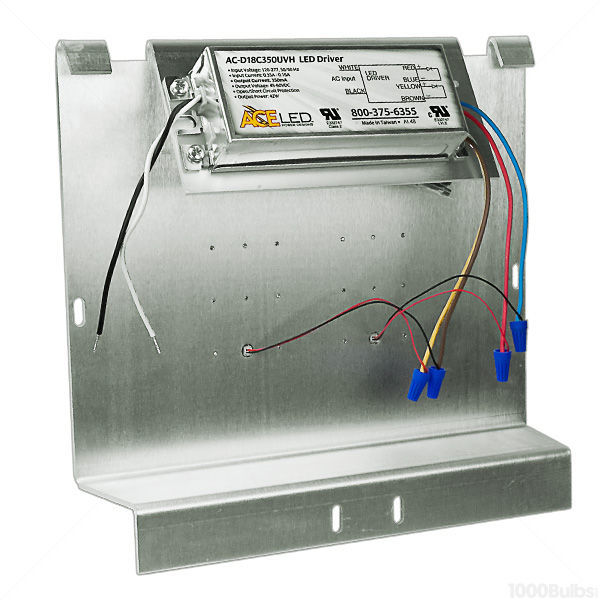

- Two-Output Channel, Class 2 LED Driver, Model Number: AC-D12C350UVH
- Industrial Grade Aluminum LED Driver Bracket

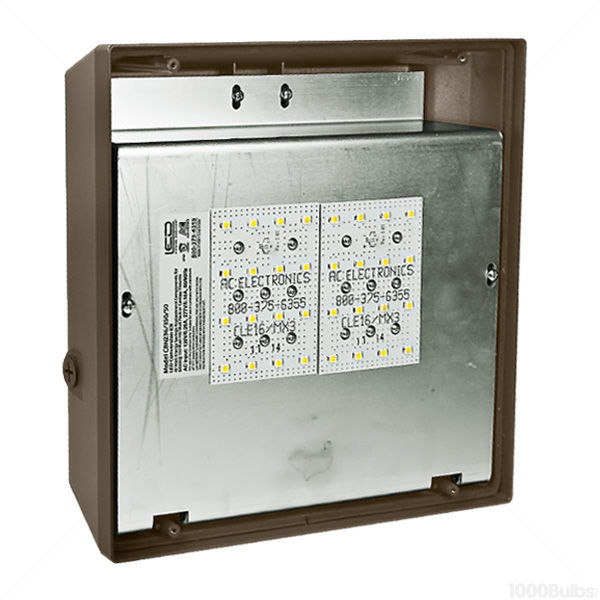

- 2 PCB LED Arrays with 32 CREE XP-G2 LEDs
- Installation/Assembly Instructions
- All Required Assembly and Mounting Hardware

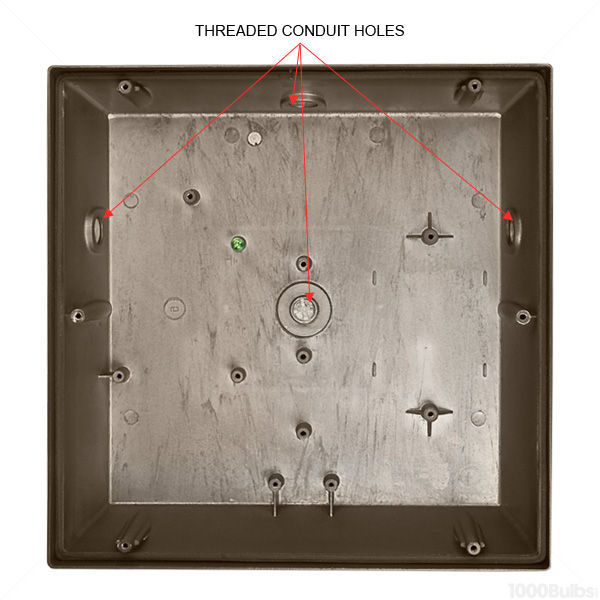

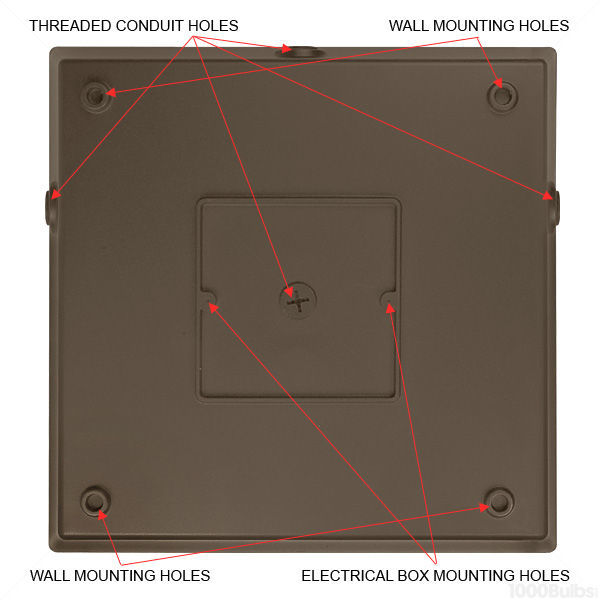

- Grandlite SM012 Fixture Housing
