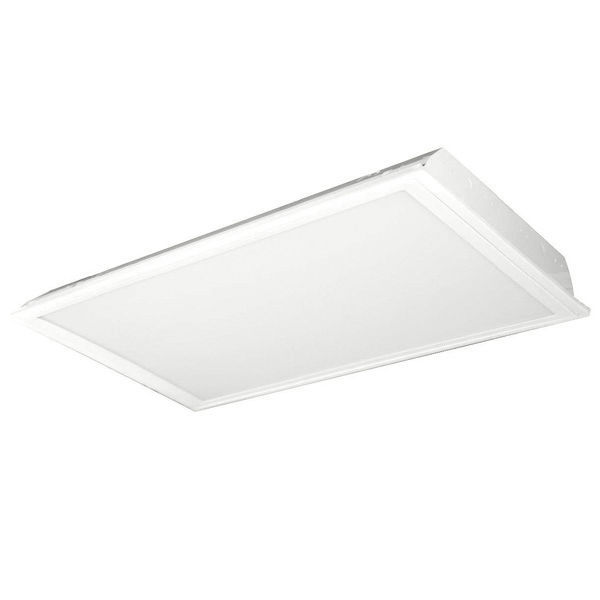

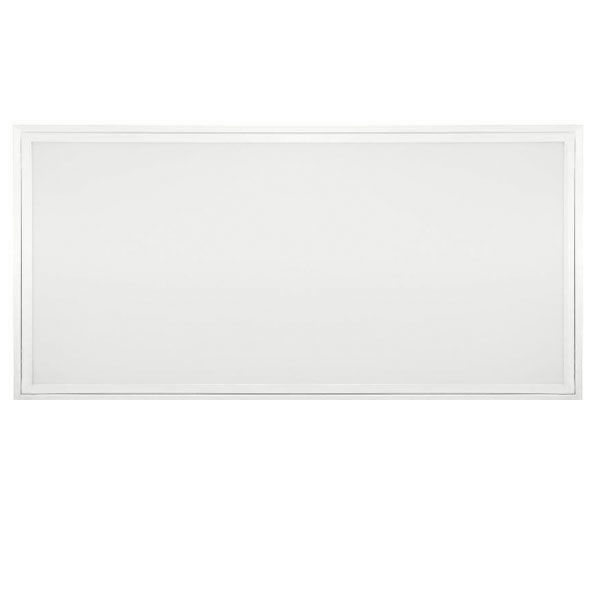

4498 Lumens - 2 x 4 LED Lay-In Troffer
55 Watt - 2 Lamp Fluorescent Equal - 4100 Kelvin - 120-277V - 5 Year Warranty - Maxlite 71477
Description
The Maxlite 71477 (MLRT24D5541) 2x4 ECO-T troffer is equipped with LM-80-rated LED strips and a clear prismatic diffuser allowing for higher lumens and making it the silent, flicker-free solution for commercial or institutional applications. Recently endorsed as a money-saving product from Buildings magazine, this 55-watt Maxlite troffer combines high efficiency in a slim profile with the long-life benefits of LED technology.
- Effectively projects 90 percent of the light in a downward 60-degree beam angle
- Steel housing and back panel provide heat sink and thermal control
- Panels are fully dimmable with a standard 0- to 10-volt wall dimmer
- Slim profile, fits standard T-grid for installation in drop ceilings
- Designed to operate with standard 120-277-volt on/off wall switches
- RoHS compliant and DesignLights Consortium (DLC) qualified
- Provides a brilliant 4100 Kelvin, cool white color temperature
- Rated for 50,000 hours of life on L70 standards
- Self driven, no additional drivers required
Brochures & Spec Sheets
Maxlite 71477 Spec SheetSpecifications
| Brand: | MaxLite |
| MPN (Part No.): | 71477 |
| Order Code: | MLRT24D5541 |
| Family: | Eco-T |
| Dimmable: | Yes |
| CA Title 24: | Compliant |
| DLC Listed: | Yes |
| UL Listed: | Indoor |
| ETL Listed: | Yes |
| CRI: | 85 |
| Color: | Cool White |
| Color Temperature: | 4100 Kelvin |
| Life Hours: | 50,000 |
| Wattage: | 55 Watt |
| Lumens: | 4498 |
| Voltage: | 120 |
| Finish: | Matte White |
| Housing: | Steel |
| Light Source: | LED |
| Made in USA: | Yes |
| Lens: | Prismatic Acrylic |
| Length: | 47.75 in. |
| Height: | 3.3 in. |
| Width: | 23.75 in. |
| Weight: | 14.5 lbs. |
| Warranty: | 5 Years |
