    RAB-EZLED78TPC2
    LED Panels & Troffers

    RAB EZLED78T/PC2 - 78 Watt - LED Spotlight

    5000K Stark White - 277V Button Photocell - Trunnion Mount - 277 Volt - Bronze Finish


    An error has occurred
    Not for Sale. Reference Only.
    RAB-EZLED78TPC2

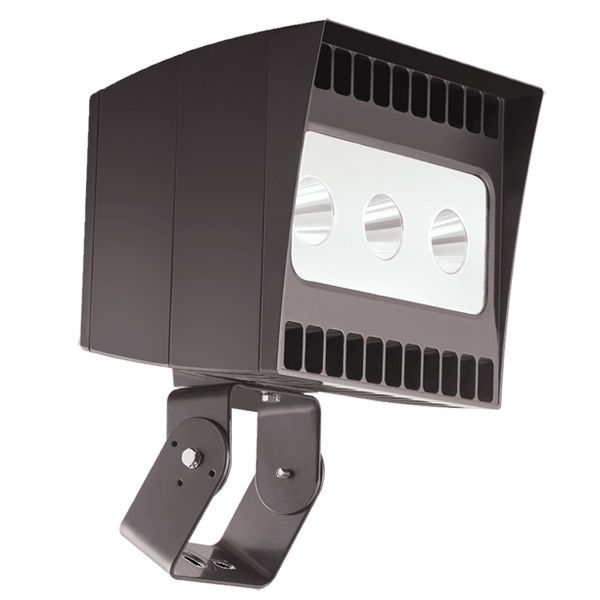

    RAB EZLED78T/PC2 - 78 Watt - LED Spotlight

    5000K Stark White - 277V Button Photocell - Trunnion Mount - 277 Volt - Bronze Finish

    The RAB EZLED78T/PC2 high performance 78-watt LED spot light comes with a trunnion mount, 277-volt button photocell, and features a concentrated, narrow beam distribution and a high lumen output, making it perfect for illuminating large flags, signs, and building facades from up to 80 feet away. Tested beyond industry standards, this LED fixture is UL listed for wet location use, RoHS compliant, have no mercury or lead, and emit no UV light. RAB LED products have a 5-year warranty on the entire unit - LED, Driver, Finish, Performance - you name it! For the highest quality LED light fixtures, look no further than RAB for performance combined with energy saving.

    RAB Engineering can provide layout and energy savings assistance. Please contact your 1000Bulbs.com sales professional for assistance with these services.

    Savings over life of lamp: $0

    Energy Savings / ROI Calculator

    Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

    Calculate the total kWh per year saved

    Calculate the total energy cost saved per year

    Payback on Investment

    Specifications

    Brand:RAB Lighting
    MPN Mfg Part No:EZLED78T/PC2
    UPC:1981304213
    UL Listed:Wet Locations
    RoHS:Compliant
    CRI:66
    Color Temperature:5000 Kelvin
    Life Hours:100,000
    Wattage:78 Watt
    Lumens (Initial):5765
    Lumens Per Watt:61
    Voltage:120/208/240/277
    Finish:Bronze
    Metal Halide Equal:250 Watt
    Housing:Die Cast Aluminum
    Light Source:LED
    Made in USA:Yes
    Mounting:Trunnion
    NEMA:NEMA Beam 3H x 3V
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):104 Deg. F
    Lens:Tempered Glass
    Height:15.6 in.
    Width:11.4 in.
    Depth:9.5 in.
    Weight:27.5 lbs.
    Warranty:5 Years
