    Exitronix XEB-T5-5-B-LM - Emergency Backup Ballast

    90 min. - Operates (1) T5, T8, T10, or T12 Linear Lamps - 120/277 Volts


    An error has occurred
    Not for Sale. Reference Only.
    EX-XEBT55BLM

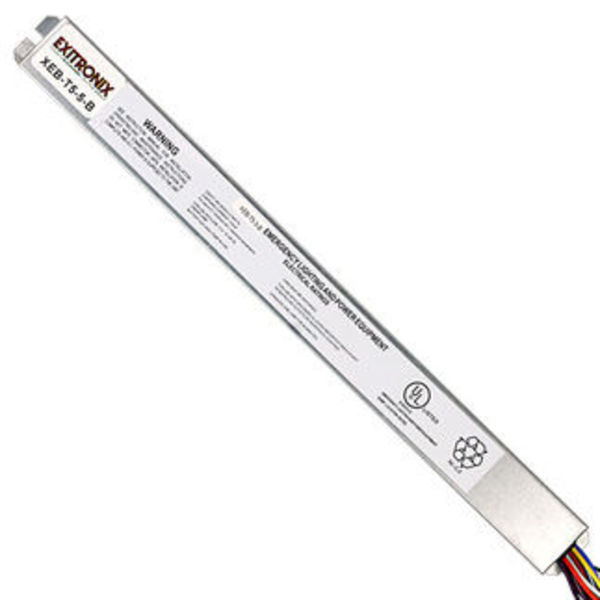

    Exitronix XEB-T5-5-B-LM - Emergency Backup Ballast

    90 min. - Operates (1) T5, T8, T10, or T12 Linear Lamps - 120/277 Volts

    Brochures & Spec Sheets

    Be prepared for any emergency with the Exitronix XEB-T5-5-B-LM fluorescent emergency backup ballast. This UL listed ballast has dual voltages of 120 and 277 volts and provides emergency operation for 90 minutes in the event of a power failure. This ballast has a minimal initial illumination of 320-500 lumens for one lamp and is compatible with most T5, T8, T10, or T12 linear lamps.

    Specifications

    Brand:Exitronix
    Part No.:XEB-T5-5-B-LM
    UPC:084675002007
    Family:XEB-T5-5-B-LM Series
    UL Listed:Yes
    Voltage:120/277
    Emergency Operation:90 Minutes
    Lamps Operated:(1) Lamp
    Max. Light Output:500 Lumens
    Operates:(1) Linear lamp
    Recharge Time:24 Hours
    Length:14.2 in.
    Height:1.2 in.
    Width:1.1 in.
    Weight:1.36
    Warranty:5 Years
