High Power HID Commercial Controller with Relay Trigger Cord
12 Universal Outlets for HID Ballasts - 12000 Max. Wattage - 120/240V - 60A - Autopilot APCLC12DX
Details
Description

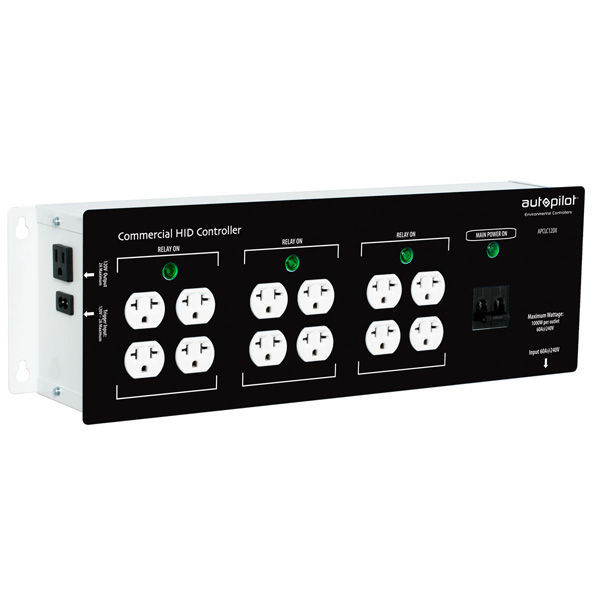

The Autopilot APCLC12DX high power HID commercial controller with relay trigger cord is specifically designed for operation of high intensity discharge (HID) lighting systems. It can control up to 12,000 watts of lighting from a standard 24-hour timer (sold separately). The 12 universal outlets allow for running your ballasts at 120 or 240 volts without having to change out your ballast power cords. A high power relay allows the power to cycle on and off, while the timer and/or trigger cord activate the relay. Providing safety and protection from overloads, this controller also has a built-in circuit breaker. The commercial 12-light controller features an integrated time delay to "soft start" each bank of four lights, reducing the start-up load, while external breakers allow the user to easily shut down power to the attached equipment.
Brochures & Spec Sheets
Product Attributes
Brand | na |
---|---|
MPN (Part No.) | APCLC12DX |
Maximum Wattage | 12000 Watt |
Voltage | 120/240 |
Amperage | 60 Amps |
Cord Type | Relay Trigger Cord |
Mounting | Hard Wire/Wall Mount |
---|---|
Number of Outlets | 12 |
Material | Steel |
Outlet Type | NEMA 6-15R/Universal |
Use With | (12) HID Ballasts |
Case Quantity | 4 |
