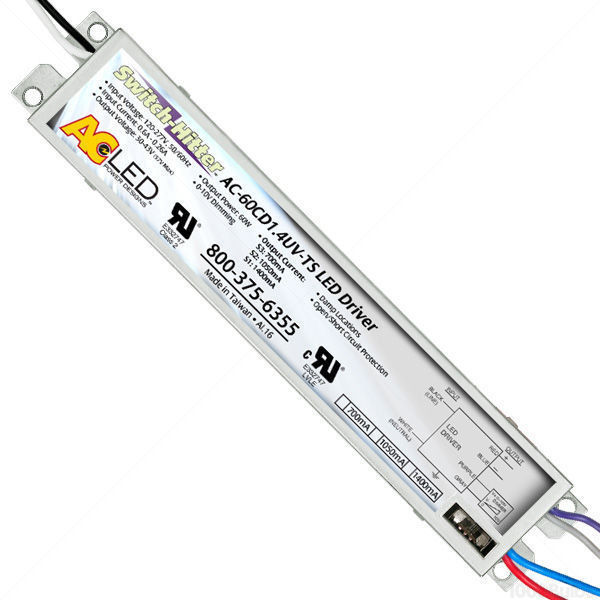

LED Driver - Dimmable - 30-60W - 700-1050-1400mA Output Current
120-277V Input - 30-43V Output - For Constant Current Products Only - AC Electronics AC-60CD1.4UV-TS
Details
Description
- 0.7-1.4 Amp Output Current
- Maximum wattage 60
- 30-43 Voltage output
- IP66 Rated
For commercial applications.
Brochures & Spec Sheets
AC Electronics AC-60CD1.4UV-TS Spec Sheet
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | AC-60CD1.4UV-TS |
| Lighting Technology | LED |
| Family | Switch Hitter |
| Dimmable | Yes |
| Dimming Type | 0-10 Volt |
| IP Rating | IP-66 |
| Maximum Wattage | 60 Watt |
| Ratings and Certifications | Indoor/Outdoor/UL |
| Input Voltage | 120/277 |
| Mounting | Side Leads |
| Start Temp. (Min) | -40 Deg. F |
| Efficiency | up to 84% |
| Power Factor | 0.95 |
|---|---|
| Type | Constant Current |
| Length | 9.5 in. |
| Height | 1.14 in. |
| Width | 1.7 in. |
| Current Type | Switchable |
| Max Output Current | 1400mA |
| Min Output Current | 700mA |
| Max Output Voltage | 43 |
| Min Output Voltage | 30 |
| Weight | 1.3 lb. |
| Warranty | 5-Year Limited |
| Case Quantity | 30 |
