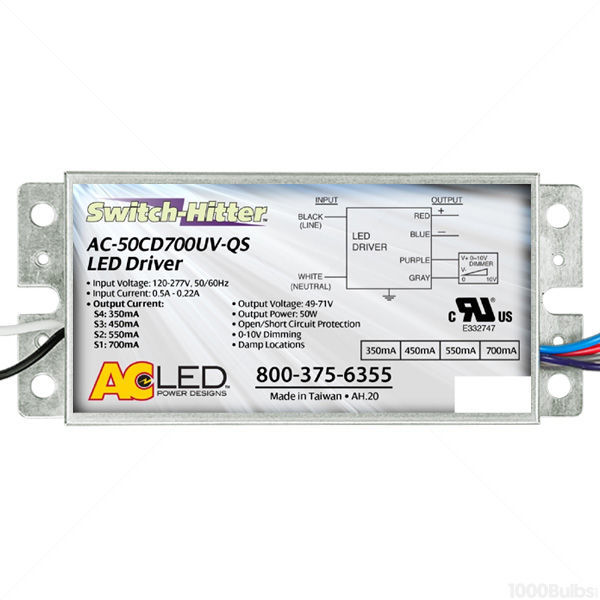

LED Driver - Dimmable - 25-50W - 350-700 Output Current
120-277V Input - 49-71V Output - For Constant Current Products Only - AC Electronics AC-50CD700UV-QS
Brochures & Spec Sheets
AC Electronics AC-50CD700UV-QS Spec Sheet
| Brand | AC Electronics |
| MPN (Part No.) | AC-50CD700UV-QS |
| Family | Switch Hitter |
| Case Quantity | 40 |
| Input Voltage | 120/277 |
| Maximum Wattage | 50 Watt |
| Mounting | Side Leads |
| Start Temp. (Min) | -40 Deg. F |
| Output Voltage | 49-71 |
| Power Factor | 0.95 |
| Type | Constant Current |
| Warranty | 5 Years |
| Weight | 0.8 lb. |
| Dimmable | Yes |
| Life Hours | 100,000/50,000 |
| Length | 6.5 in. |
| Height | 1.18 in. |
| Width | 2.9 in. |
| IP Rating | IP-66 |
| Efficiency | up to 83% |
| Minimum Wattage | 25 Watt |
| Safety Rating | UL Indoor/Outdoor |
Description
AC Electronics Switch-Hitter Constant Current LED drivers feature an on-board current selection that includes adjustable current switching and dimming capabilities. The AC-50CD700UV-QS 50-watt driver offers up to four different output currents: 350, 450, 550, or 700mA.
- Consistant and effiecient solution with a life of up to 100,000 hours
- Suitable for environments with dust and jets of water
- For use with constant current, high power LEDs
- Input voltage range of 120-277VAC
- Output power of 25-50 Watts
- Output voltage of 49-71VDC
- Input frequency of 50-60Hz
Professional Installation Recommended
