LED Driver - Dimmable - 59 Volt - 29-60 Watts - 1050mA Output Current

120-277V Input - 37-59V Output - For Constant Current Products Only - AC Electronics AC-60CD1.05UVTS

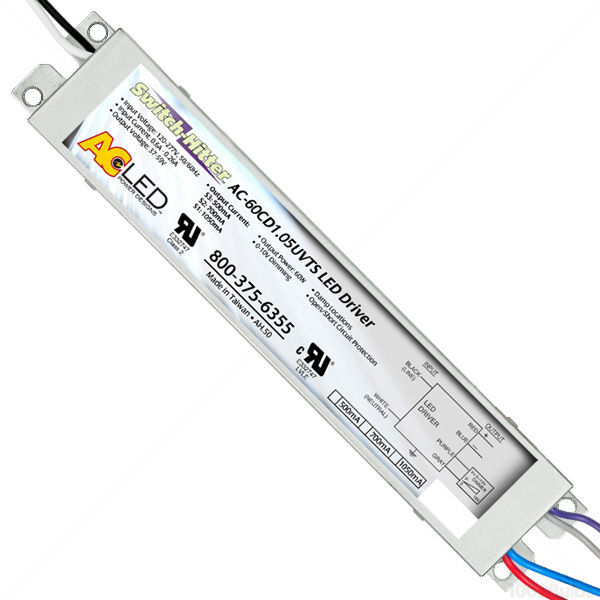

LED Driver - Dimmable - 59 Volt - 29-60 Watts - 1050mA Output Current Thumbnail

AC Electronics Switch-Hitter Constant Current LED drivers feature an on-board current selection that includes adjustable current switching and dimming capabilities. With a life rating of up to 100,000 hours, the AC-60CD1.05UVTS 60-watt driver is a consistent and efficient solution for your LED lighting system.

  • Offers up to three different output currents: 500, 700, or 1050mA
  • Suitable for environments with dust and jets of water
  • For use with constant current, high power LEDs
  • Input voltage range of 120-277VAC
  • Output power of 29-60 Watts
  • Output voltage of 37-59VDC
  • Input frequency of 50-60Hz

Professional Installation Recommended

View More Details

Product Image
$38.76 ea.
An error has occurred
SKU: LEDF-AC60CD105UVTS

Lighting can be confusing! Expert Help - Call Now
1-800-624-4488

AC Electronics Switch-Hitter Constant Current LED drivers feature an on-board current selection that includes adjustable current switching and dimming capabilities. With a life rating of up to 100,000 hours, the AC-60CD1.05UVTS 60-watt driver is a consistent and efficient solution for your LED lighting system.

  • Offers up to three different output currents: 500, 700, or 1050mA
  • Suitable for environments with dust and jets of water
  • For use with constant current, high power LEDs
  • Input voltage range of 120-277VAC
  • Output power of 29-60 Watts
  • Output voltage of 37-59VDC
  • Input frequency of 50-60Hz

Professional Installation Recommended

Output Voltage 37-59 Volts
Brand AC Electronics
MPN (Part No.) AC-60CD1.05UVTS
Case Quantity 30
Input Voltage 120/277
Dimmable Yes
Start Temp. (Min) -40 Deg. F
Length 9.5 in.
Width 1.7 in.
Height 1.14 in.
Weight 1.3 lb.
Life Hours 100,000
Warranty 5 Years
IP Rating IP-66
Family Switch Hitter
Maximum Wattage 60 Watt
Minimum Wattage 29 Watt
Mounting Bottom Lead/Side Leads
Efficiency up to 84%
Power Factor 0.95
Safety Rating UL Indoor/Outdoor
Type Constant Current

Description

AC Electronics Switch-Hitter Constant Current LED drivers feature an on-board current selection that includes adjustable current switching and dimming capabilities. With a life rating of up to 100,000 hours, the AC-60CD1.05UVTS 60-watt driver is a consistent and efficient solution for your LED lighting system.

  • Offers up to three different output currents: 500, 700, or 1050mA
  • Suitable for environments with dust and jets of water
  • For use with constant current, high power LEDs
  • Input voltage range of 120-277VAC
  • Output power of 29-60 Watts
  • Output voltage of 37-59VDC
  • Input frequency of 50-60Hz

Professional Installation Recommended
