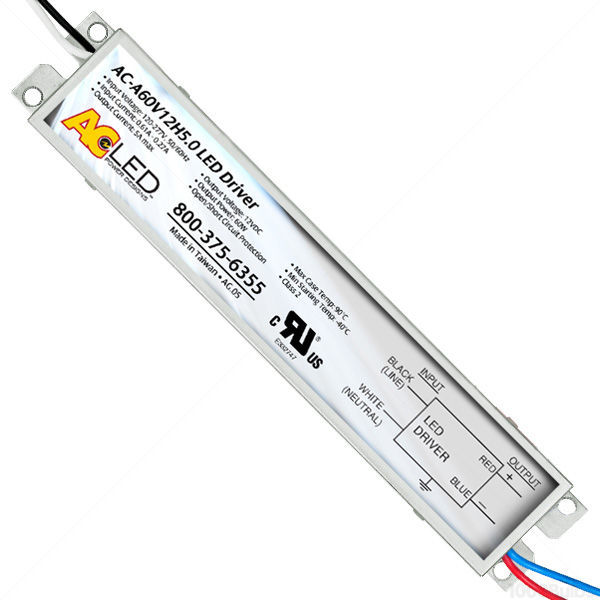

LED Driver - 12 Volt - 6-60 Watts
Input 120-277V - For Constant Voltage Products Only - AC Electronics AC-A60V12H5.0
Alternate Products
Details
Description
- 5 Amp Output Current
- Maximum wattage 60
- 12 Voltage output
- IP66 Rated
For commercial applications.
Brochures & Spec Sheets
AC Electronics AC-A60V12H5.0 Spec Sheet
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | AC-A60V12H5.0 |
| Lighting Technology | LED |
| Family | N/A |
| Dimmable | No |
| IP Rating | IP-66 |
| Life Hours | 100,000 |
| Maximum Wattage | 60 Watt |
| Minimum Wattage | 6 Watt |
| Ratings and Certifications | Indoor/Outdoor/UL |
| Input Voltage | 120/208/240/277 |
| Mounting | Side Leads |
| Start Temp. (Min) | -40 Deg. F |
| Efficiency | up to 87% |
| Power Factor | 0.95 |
|---|---|
| Type | Constant Voltage |
| Length | 9.5 in. |
| Height | 1.14 in. |
| Width | 1.7 in. |
| Current Type | Fixed |
| Max Output Current | 5000mA |
| Min Output Current | 500mA |
| Max Output Voltage | 12 |
| Number of Output Channels | 1 |
| Weight | 1.32 lbs. |
| Warranty | 5-Year Limited |
| Case Quantity | 30 |
