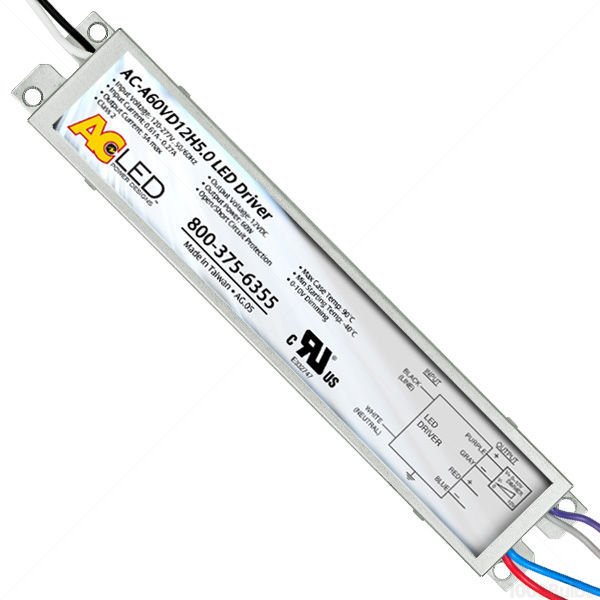

LED Driver - Dimmable - 12 Volt - 6-60 Watts
Input 120-277V - For Constant Voltage Products Only - AC Electronics AC-A60VD12H5.0
Brochures & Spec Sheets
AC Electronics Warranty
| Brand | AC Electronics |
| MPN (Part No.) | AC-A60VD12H5.0 |
| Case Quantity | 30 |
| Maximum Wattage | 60 Watt |
| Input Voltage | 120/277 |
| Dimmable | Yes |
| Length | 9.5 in. |
| Width | 1.7 in. |
| Height | 1.14 in. |
| Weight | 1.32 lb. |
| Start Temp. (Min) | -40 Deg. F |
| Life Hours | 100,000/50,000 |
| IP Rating | IP-66 |
| Warranty | 5 Years |
| Mounting | Side Leads |
| Output Voltage | 12 |
| Efficiency | up to 83.7% |
| Power Factor | 0.95 |
| Minimum Wattage | 6 Watt |
| Output Current | 5 Amps Max |
| Safety Rating | UL Indoor/Outdoor |
| Family | N/A |
Description
With a long-lasting life rating at 100,000 hours, the AC Electronics AC-A60VD12H5.0 constant voltage LED driver can be used to run back-lit ad signs, architecture lighting, landscape lighting and more. This 60 watt dimmable driver is reliable, long-lasting and versatile and converts 120-277 volts down to 12 volts.
- Suitable for environments with dust and jets of water
- Can be used with 0-10V dimmer, dims down to 10%
- For use with constant voltage LEDs
- Input current range of 120-277V
- Output power of 6-60 Watts
- Input frequency of 50-60Hz
- Output voltage of 12V
- Professional Installation Recommended
