F54T5 Advance Ballast
Additional Media

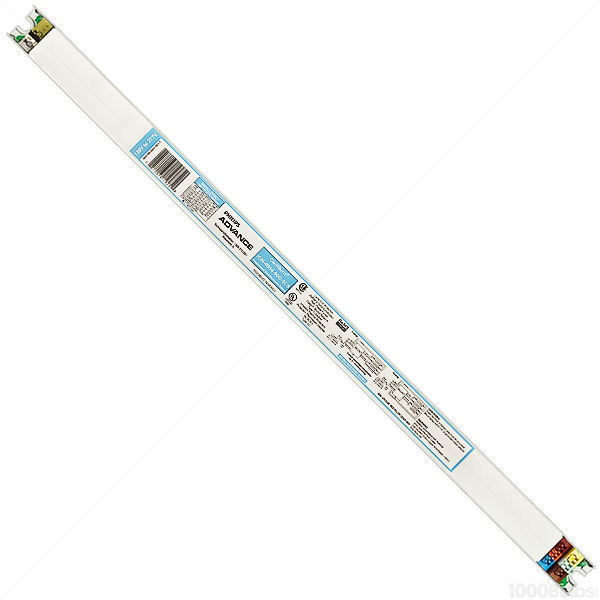

Advance Centium ICN-S5490-C2-LS

(4) Lamp - F54T5/HO - 120/230/277 Volt - Programmed Start - 0.99 Ballast Factor


Philips Advance programmed-start Centium ballasts for T5HO lamps are the optimal choice for a broad range of retail, commercial, institutional, and industrial applications including schools, offices, specialty and department stores, warehouses, and manufacturing. The Advance ICN-S5490-C2LS-35M electronic fluorescent ballast operates (4) F54T5/HO lamps at 120/230/277 input volts and 54 watts each.



  • Reduces lighting costs by up to 20% when installed with modern, energy-efficient lamps in building retrofits
  • IntelliVolt multiple-voltage technology enables operation from 120 to 277 volts, 50/60 Hz
  • Optimizes fit for applications where long lamp life or frequent switching is required
  • Delivers silent, flicker-free operation

  • Reliable and energy-efficient, Advance's broad line of Centium high frequency electronic ballasts for T5, T8 and T12 fluorescent lamps offers all of the energy-saving properties of Advance's standard electronic line plus the added benefits of extended life and small can size options for enhanced flexibility and versatility.

    Centium is ideal for general office lighting, conference, meeting, and board room applications, indirect and decorative lighting, and new fixture design.


    Stock Code:  BA-ICN4S5490C2A
    Family:  Centium
    UPC:  781087119242
    Voltage:  120/230/277
    Length:  24 in.
    Height:  1 in.
    Start Temp. (Min):  -20 Deg. F
    Start Method:  Programmed Start
    Type:  Electronic Fluorescent
    CSA Listed:  Yes
    Warranty:  5 Years
    Brand:  Advance
    Part No.:  ICN-S5490-C2LS-35M
    Wattage:  54 Watt
    Ballast Factor:  0.99
    Width:  1.18 in.
    Lamps Operated:  (4) Lamps
    Power Factor:  98%
    THD:  10%
    Weight:  2.85 lb.
    UL Listed:  Yes
    Case Quantity:  12
