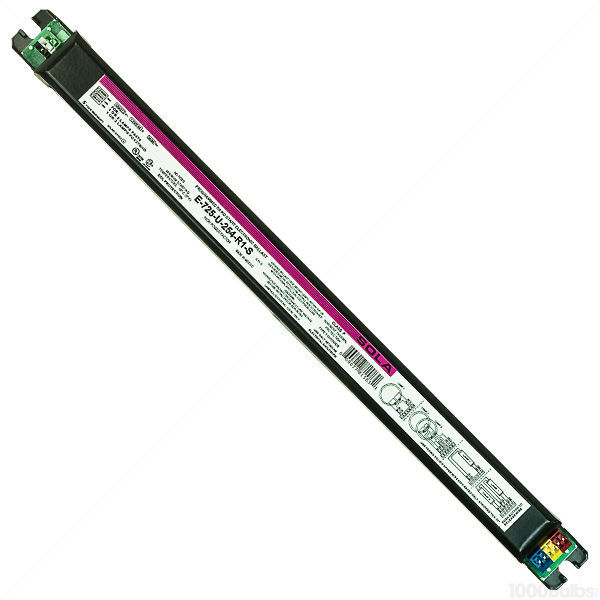

Sola E-725-U-254-R1-S
(1-2) Lamp - F54T5 - 120/277 Volt - Programmed Start - 0.85 Ballast Factor
SKU:
BS-E725U254R1S
No pricing information found.
Details
Description
Sola uses the highest grade materials available for their ballasts. The Sola E-725-U-254-R1-S electronic fluorescent ballast operates one or two F54T5 CFL lamps at 120/277 input volts. Ideal for use in normal light areas, this programmed start ballast is typically used in offices, board rooms, and retail. Also operates one or two FC12T5/HO.
Brochures & Spec Sheets
Sola E-725-U-254-R1-S Spec Sheet
Product Attributes
| Brand | Sola |
|---|---|
| MPN (Part No.) | E-725-U-254-R1-S |
| Lighting Technology | Fluorescent |
| UL Listed | Yes |
| Voltage | 120 |
| Ballast Factor | 0.85 |
| Lamps Operated | (2) Lamps |
| Start Temp. (Min) | 32 Deg. F |
| Power Factor | 98% |
| Start Method | Programmed Start |
|---|---|
| THD | 10% |
| Type | Electronic Fluorescent |
| CSA Listed | Yes |
| Length | 17 in. |
| Height | 1.2 in. |
| Width | 2 in. |
| Weight | 1.25 lbs. |
| Warranty | 5-Year Limited |
