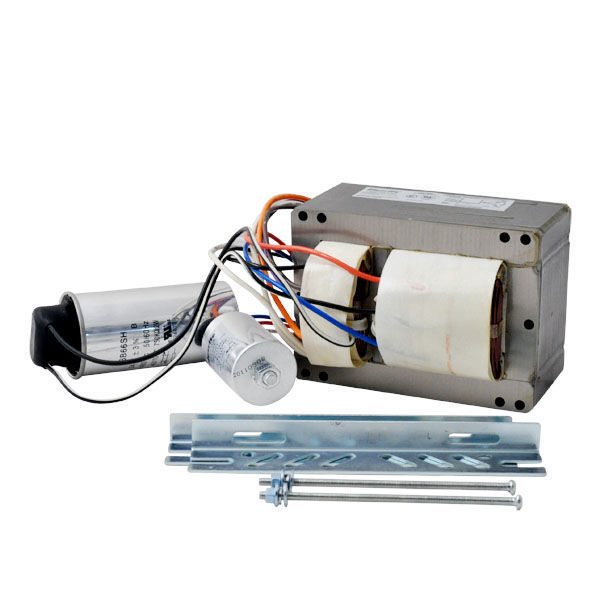

Sola E-SZA0DD70 - 70 Watt - High Pressure Sodium Ballast

Sola E-SZA0DD70 - 70 Watt - High Pressure Sodium Ballast - ANSI S62 - 480 Volt - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit

Sola E-SZA0DD70 - 70 Watt - High Pressure Sodium Ballast Image

Sola E-SZA0DD70 - 70 Watt - High Pressure Sodium Ballast

Sola E-SZA0DD70 - 70 Watt - High Pressure Sodium Ballast - ANSI S62 - 480 Volt - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit

The Sola E-SZA0DD70 pulse start metal halide ballast operates on a 480-volt system. For use with 70-watt lamps, this mag... View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: BS-ESZA0DD70
Brand:Sola
MPN (Part No.):E-SZA0DD70
ANSI Code:S62
Safety Rating:N/A
Wattage:70 Watt
Voltage:480
Mounting:Hardware Included
Operates:LU70
Start Temp. (Min):-40 Deg. F
Start Temp. (Max):212 Deg. F
Power Factor:90%
Type:High Pressure Sodium
CSA Listed:Yes
Length:2.62 in.
Height:2.18 in.
Width:2.5 in.
Weight:2.70 lb.
Warranty:3 Years

Description

The Sola E-SZA0DD70 pulse start metal halide ballast operates on a 480-volt system. For use with 70-watt lamps, this magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 212 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor, and bracket kit.
