    Sola E-SZA00W35 - 35 Watt - High Pressure Sodium Ballast

    ANSI S76 - 4 Tap - Power Factor 90% - Max. Temp. Rating 180 Deg. F - Includes Dry Film Capacitor, Ignitor and Bracket Kit


    Product Image
    $25.30 ea
    An error has occurred
    BS-ESZA00W35

    Sola E-SZA00W35 - 35 Watt - High Pressure Sodium Ballast

    ANSI S76 - 4 Tap - Power Factor 90% - Max. Temp. Rating 180 Deg. F - Includes Dry Film Capacitor, Ignitor and Bracket Kit

    Description

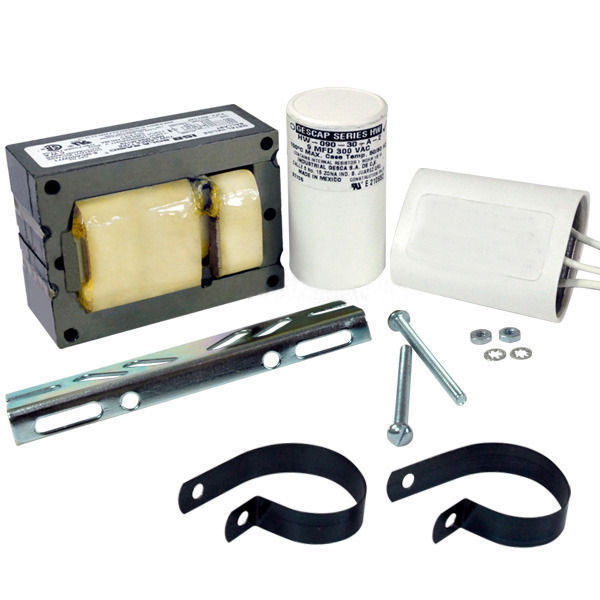

    The Sola E-SZA00W35 high pressure sodium ballast has a 4-tap voltage system operating from 120 to 277 volts. For use with 35 watt lamps, this magnetic HID ballast has a normal power factor, suitable for most low-wattage applications. A temperature rating of 180 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry film capacitor, ignitor and bracket kit.

    Comparable Products

    Sola E-SZA00W35 - 35 Watt - High Pressure Sodium Ballast Image Sola E-SRN00F35 - 35 Watt - High Pressure Sodium Ballast Image
    Description Sola E-SZA00W35 - 35 Watt - High Pressure Sodium Ballast Sola E-SRN00F35 - 35 Watt - High Pressure Sodium Ballast
    Price $25.30 $11.08
    SKU BS-ESZA00W35 BS-LU0035120
    Brand Sola Sola
    MPN (Part No.) E-SZA00W35 E-SRN00F35
    Current Item
    An error has occurred

    Specifications

    Brand:Sola
    MPN (Part No.):E-SZA00W35
    ANSI Code:S76
    Safety Rating:UL Indoor
    Wattage:35 Watt
    Voltage:120/208/240/277
    Ballast Type:HX-HPF
    Mounting:Hardware Included
    Operates:LU35
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):180 Deg. F
    Power Factor:90%
    Type:High Pressure Sodium
    CSA Listed:Yes
    Length:3.92 in.
    Height:2.81 in.
    Width:2.2 in.
    Weight:4.1 lb.
    Warranty:3 Years
