    BS-ESCA0DD310
    New LED Panels

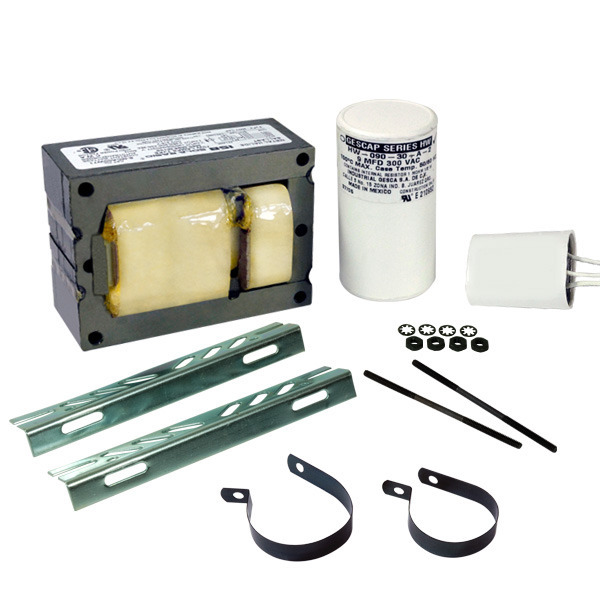

    Sola E-SCA0DD310 - 310 Watt - High Pressure Sodium Ballast Image

    Sola E-SCA0DD310 - 310 Watt - High Pressure Sodium Ballast

    ANSI S67 - 480 Volt - Power Factor 90% - Max. Temp. Rating 180 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    BS-ESCA0DD310
    See Similar Products

    Sola E-SCA0DD310 - 310 Watt - High Pressure Sodium Ballast

    ANSI S67 - 480 Volt - Power Factor 90% - Max. Temp. Rating 180 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit

    Description

    The Sola E-SCA0DD310 high pressure sodium ballast operates at a high voltage output of 480 volts and is used with 310 watt lamps. This magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 180 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

    Comparable Products

    Sola E-SCA0DD310 - 310 Watt - High Pressure Sodium Ballast Image Electronic Sign Ballast - 2-16 ft. Total Lamp Length - (1-2 Lamps) Image Hatch MC20-1-J-277X - 20 Watt - Electronic Metal Halide Ballast Image Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Image Hatch MC20-1-F-UNNU - 20 Watt - Electronic Metal Halide Ballast Image
    Description Sola E-SCA0DD310 - 310 Watt - High Pressure Sodium Ballast Electronic Sign Ballast - 2-16 ft. Total Lamp Length - (1-2 Lamps) Hatch MC20-1-J-277X - 20 Watt - Electronic Metal Halide Ballast Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Hatch MC20-1-F-UNNU - 20 Watt - Electronic Metal Halide Ballast
    Price - $37.86 $64.13 $64.13 $67.16
    SKU BS-ESCA0DD310 BH-ESB021612UV BH-MC201J277X BH-MC201F120X BH-MC201FUNNU
    Brand Sola Hatch Hatch Hatch Hatch
    MPN (Part No.) E-SCA0DD310 ESB-0216-12-UV MC20-1-J-277X MC20-1-F-120X MC20-1-F-UNNU
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Specifications

    Brand:Sola
    MPN (Part No.):E-SCA0DD310
    ANSI Code:S67
    UL Listed:Yes
    Wattage:310 Watt
    Voltage:480
    Ballast Type:CWA
    Mounting:Hardware Included
    Operates:LU310
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):180 Deg. F
    Power Factor:90%
    Type:High Pressure Sodium
    CSA Listed:Yes
    Length:4.75 in.
    Height:4.25 in.
    Width:3.8 in.
    Weight:14.3 lb.
    Warranty:3 Years
