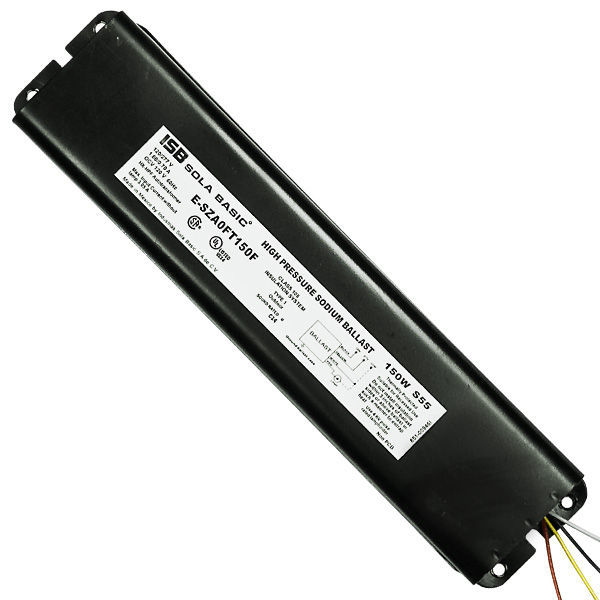

Sola E-SZA0FT150F - 150 Watt - F-Can High Pressure Sodium Ballast
ANSI S55 - 120/277 Volt - Power Factor 90% - Max. Temp. Rating 194 Deg. F
SKU:
BS-ESZA0FT150F
Alternate Products
Details
Description
The Sola E-SZA0FT150F F-Can high pressure sodium ballast operates on 120 or 277-volt systems. For use with 150-watt lamps, this magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 194 degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue.
Brochures & Spec Sheets
Sola ESZA0FT150F Spec Sheet
Product Attributes
| Brand | Sola |
|---|---|
| MPN (Part No.) | E-SZA0FT150F |
| Lighting Technology | High Pressure Sodium |
| ANSI Code | S55 |
| Wattage | 150 Watt |
| Voltage | 120/277 |
| Ratings and Certifications | CSA/Indoor/UL |
| Ballast Type | F-Can |
| Operates | LU150 |
| Start Temp. (Min) | -40 Deg. F |
|---|---|
| Start Temp. (Max) | 194 Deg. F |
| Power Factor | 90% |
| CSA Listed | Yes |
| Length | 14.3 in. |
| Height | 2.63 in. |
| Width | 3.19 in. |
| Weight | 15.3 lbs. |
| Warranty | 3-Year Limited |
