Sola E620-T-45650110-TP - Magnetic Sign Ballast
Additional Media

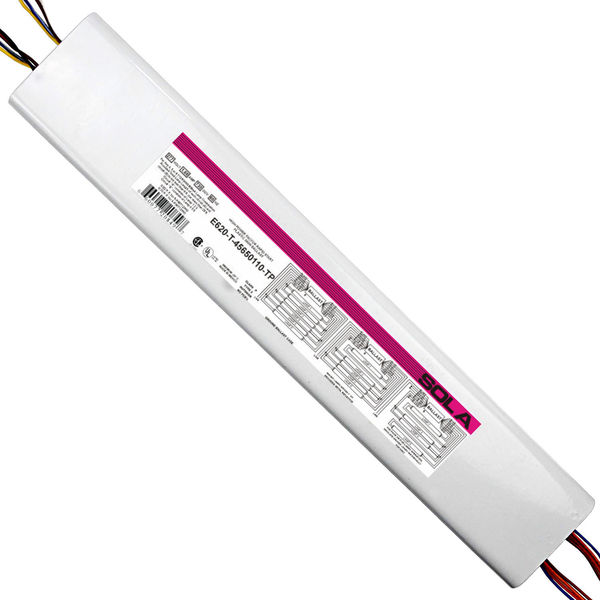

Sola E620-T-45650110-TP

(4-6) Lamp - Magnetic Sign Ballast - 277 Volt - Rapid Start - 12-40 ft. Total Lamp Length



The Sola E620-T-45650110-TP fluorescent sign ballast operates four to six T12/HO lamps at 277 input volts. Each lamp can be rated for up 113 watts and allows for total lamp footage of 40 feet maximum. This ballast is UL listed as Type 2 for outdoor usage and is perfect for outside lighting of large areas or fluorescent backlit signage. This ballast works with four F36T12/HO, five F48T12/HO, five F72T12/HO and two F59T12HO with four F72T12/HO lamps.

Brochures & Spec Sheets

Specifications

Stock Code:  BS-E620T45650110TP
Part No.:  E620-T-45650110-TP
Ballast Factor:  0.80
Width:  3.187 in.
Lamps Operated:  (6) Lamps
Lamp Footage (Min):  12 ft.
Power Factor:  99%
THD:  33%
Weight:  21 Ibs.
UL Listed:  Type 2 Outdoor


Brand:  Sola
Voltage:  277
Length:  19.19 in.
Height:  2.655 in.
Lamp Footage (Max):  40 ft.
Start Temp. (Min):  -20 Deg. F
Start Method:  Rapid Start
Type:  Magnetic Fluorescent
CSA Listed:  Yes
Warranty:  2 Years
