LED Wall Pack - 38 Watt - 2534 Lumens
165W MH Equal - 5572 Kelvin - Cree LEDs - 120-277V - White Finish - AC Electronics AC40GR/36/350
SKU:
LEDF-AC40GR36350
Details
Description
The AC Electronics AC40GR/36/350 LED retrofit wall pack kit is designed to save energy and prevent light pollution. Using only 38 watts, this fixture produces 2534 lumens, the equivalent of a 165-watt metal halide fixture. Included in the kit is a QSSI WPR40GRWH housing, enclosing 60 Cree ML-E LEDs that are mounted to an industrial-grade aluminum LED driver bracket. Simply wire the canopy light to an existing junction box in under 10 minutes for 50,000 hours of energy-saving commercial lighting. This RoHS compliant fixture carries a 5-year warranty. The AC40GR/36/350 is approved for use with the Tork 2107 photocell.
Brochures & Spec Sheets
AC Electronics AC40GR/36/350 Spec Sheet
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | AC40GR/36/350 |
| Lighting Technology | LED |
| Family | Minuteman 5 |
| Color Temperature | 5000 Kelvin |
| Life Hours | 50,000 |
| Wattage | 38 Watt |
| Lumens | 2,534 |
| Voltage | 120 |
| Finish | White |
| Metal Halide Equal | |
|---|---|
| Housing | Die Cast Aluminum |
| Made in USA | Yes |
| Start Temp. (Min) | -40 Deg. F |
| Start Temp. (Max) | 110 Deg. F |
| THD | 13% |
| Length | 10.5 in. |
| Width | 10.5 in. |
| Diameter | 2.75 in. |
| Warranty | 5-Year Limited |
Features
Kit Includes:

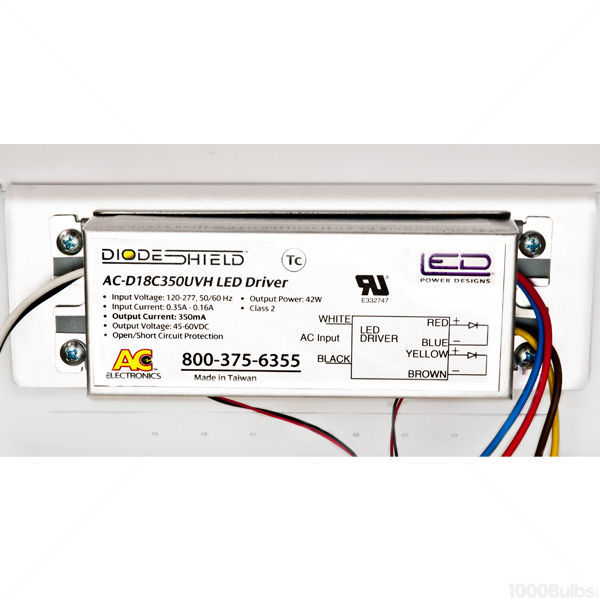

- Two-Output Channel, Class 2 LED Driver, Model Number: AC-D18C350UVH

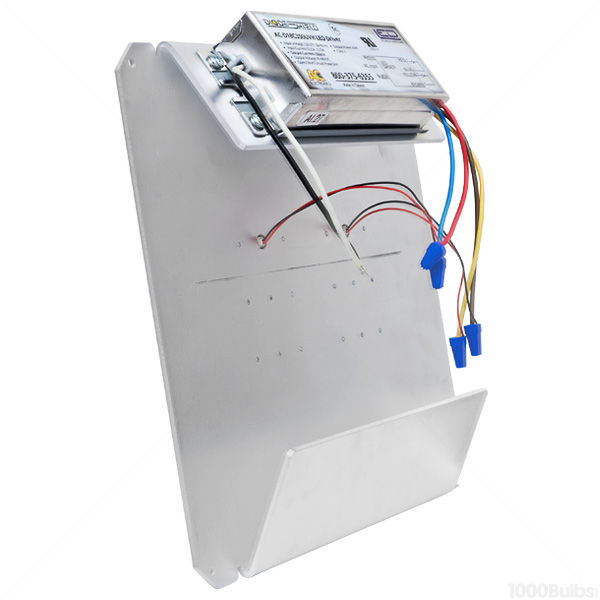

- Industrial Grade Aluminum LED Driver Bracket

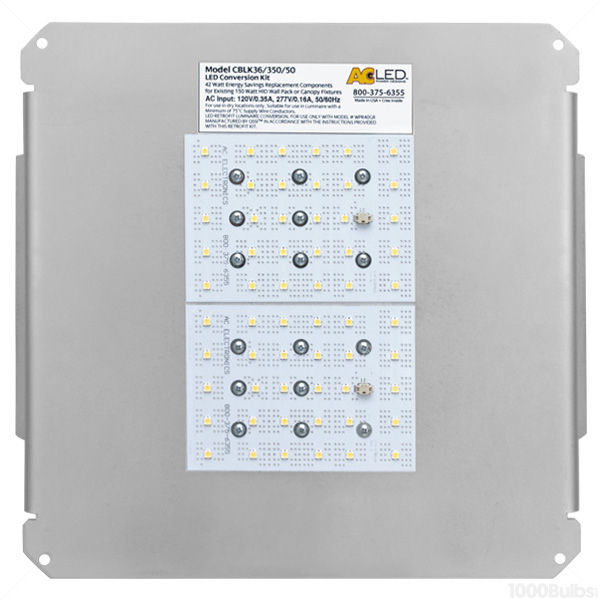

- 2 PCB LED Arrays with 60 CREE ML-E LEDs
- Installation/Assembly Instructions

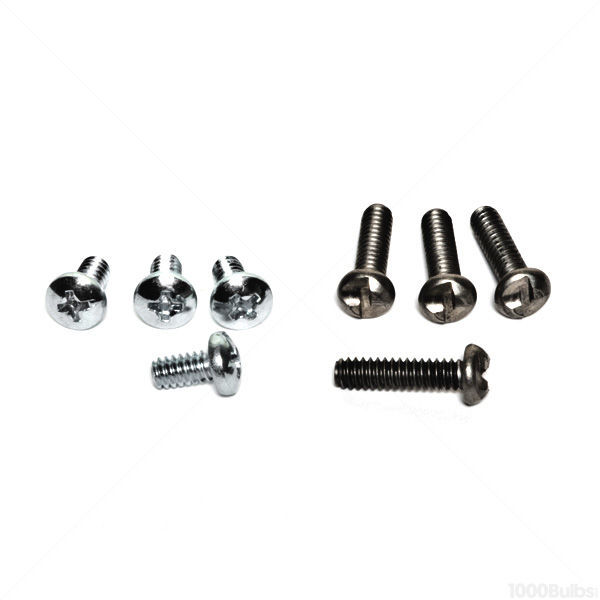

- All Required Assembly and Mounting Hardware

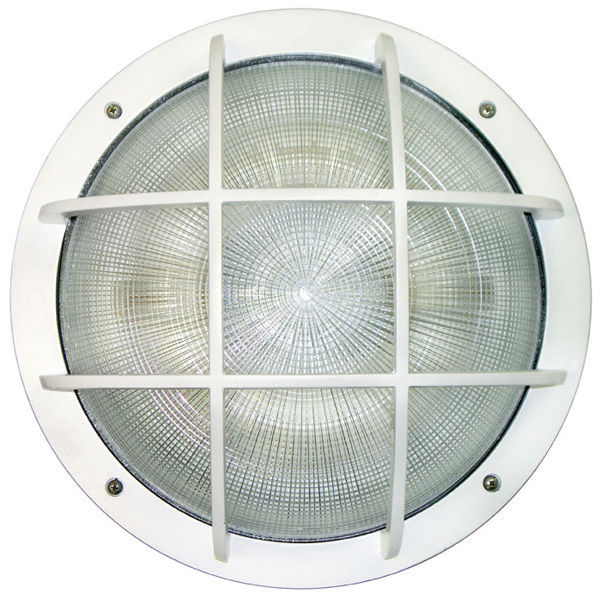

- QSSI WPR40GRWH Fixture Housing
