38 Watt - LED - Wall Pack
2630 Lumens - Retrofit Kit - 4846 Kelvin - 120-277 Volt - AC Electronics CMOW36/350/50EU
SKU:
LEDF-CMOW3635050EU
Details
Description

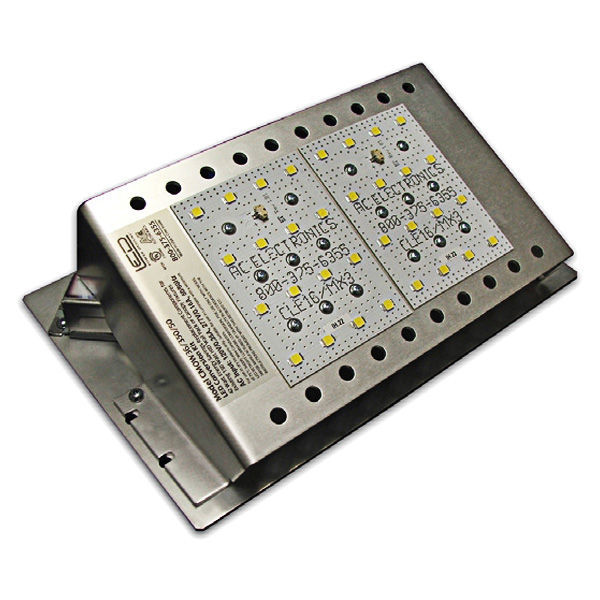

AC Electronics' CMOW36/350/50EU do-it-yourself LED cut-off wall pack lighting fixture retrofit kit is designed to convert Grandlite SM106 or QSSI WP15 metal halide or high pressure sodium fixtures into LED fixtures. UL listed, this low-energy retrofit kit shines with a cool white light of 4846K and is equivalent to a 165-watt HID fixture. The CMOW36/350/50EU is approved for use with the Tork 2107 photocell. Some assembly is required.
Brochures & Spec Sheets
AC Electronics CMOW36/350/50EU Spec Sheet
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | CMOW36/350/50EU |
| Lighting Technology | LED |
| Family | Minuteman 5 |
| UL Listed | Yes |
| CRI | Standard CRI |
| Color Temperature | 5000 Kelvin |
| Life Hours | 50,000 |
| Wattage | 38 Watt |
| Lumens | 2,630 |
| Voltage | 120 |
| Halogen Equivalent | 165 Watt |
|---|---|
| Start Temp. (Min) | -40 Deg. F |
| Start Temp. (Max) | 110 Deg. F |
| Sold Separately | Grandlite Housing/QSSI Housing |
| THD | 13% |
| Height | 8 in. |
| Width | 11.75 in. |
| Depth | 4 in. |
| Weight | 4 lbs. |
| Warranty | 5-Year Limited |
Features
Kit Includes:
- Two-Output Channel, Class 2 LED Driver, Model Number: AC-D18C350UVH
- Aluminum LED Driver Bracket
- 2 PCB LED Array with 60 CREE ML-E LEDs
- Installation/Assembly Instructions
- All Required Assembly and Mounting Hardware
Not Included:
- Grandlite SM106 Fixture Housing
- QSSI WP15 Fixture Housing
