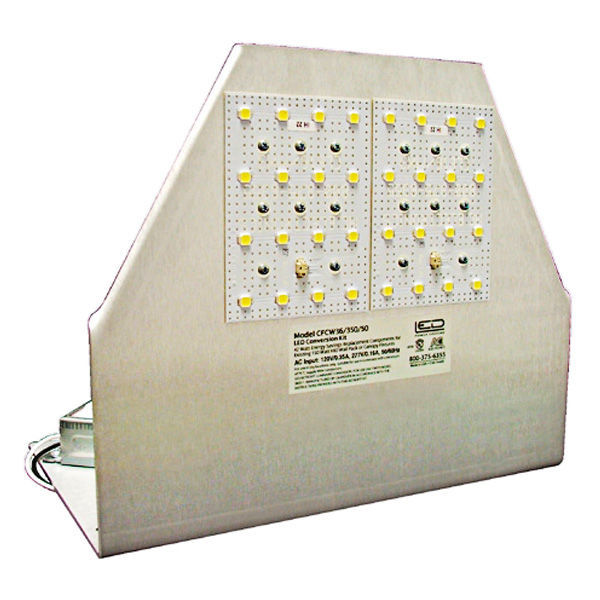

LED - Full Cut-Off Wall Pack - 34 Watt - 2526 Lumens
Retrofit Kit - 5000 Kelvin - 120-277 Volt - AC Electronics CFCW36/350/50-U
SKU:
LEDF-CFCW3635050U
Details
Description
AC Electronics' CFCW36/350/50-U do-it-yourself LED cut-off wall pack lighting fixture retrofit kit is designed to convert Grandlite SM311 or QSSI WPC15 metal halide or high pressure sodium fixtures into LED fixtures. DLC and UL listed, this low-energy retrofit kit shines with a full spectrum light of 5000K and is equivalent to a 165-watt HID fixture. The CFCW36/350/50-U is approved for use with the Tork 2107 photocell. Some assembly is required.
Brochures & Spec Sheets
Installation Instructions
Product Attributes
| Brand | AC Electronics |
|---|---|
| MPN (Part No.) | CFCW36/350/50-U |
| Lighting Technology | LED |
| Family | Minuteman 5 |
| UL Listed | Yes |
| CRI | Standard CRI |
| Color Temperature | 5000 Kelvin |
| Life Hours | 50,000 |
| Wattage | 34 Watt |
| Lumens | 2,526 |
| Voltage | 120 |
| Halogen Equivalent | 165 Watt |
|---|---|
| Start Temp. (Min) | -40 Deg. F |
| Start Temp. (Max) | 110 Deg. F |
| Sold Separately | Grandlite Housing/QSSI Housing |
| THD | 8% |
| Height | 11.38 in. |
| Width | 9.55 in. |
| Depth | 6.75 in. |
| Weight | 3 lbs. |
| Warranty | 5-Year Limited |
Features
Kit Includes:
- Two-Output Channel, Class 2 LED Driver, Model Number: AC-D18C350UVH
- Aluminum LED Driver Bracket
- 2 PCB LED Array with 32 CREE MX-6 LEDs
- Installation/Assembly Instructions
- All Required Assembly and Mounting Hardware
Not Included:
- Grandlite SM311 Fixture Housing
- QSSI WPC15 Fixture Housing
