LED Wall Pack - Retrofit Kit - 38W - 2,534 Lumens

2534 Lumens - LED Wall Pack Retrofit Kit - 38 Watt - 5572 Kelvin - 120-277V - AC Electronics CBLK36/350/50

LED Wall Pack - Retrofit Kit - 38W - 2,534 Lumens Image
LED Wall Pack - Retrofit Kit - 38W - 2,534 Lumens Image
LED Wall Pack - Retrofit Kit - 38W - 2,534 Lumens Image

LED Wall Pack - Retrofit Kit - 38W - 2,534 Lumens

2534 Lumens - LED Wall Pack Retrofit Kit - 38 Watt - 5572 Kelvin - 120-277V - AC Electronics CBLK36/350/50

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: LEDF-CBLK3635050

See Similar Products
Brand:AC Electronics
MPN (Part No.):CBLK36/350/50
Family:Minuteman 5
CRI:72.7
Color Temperature:5572 Kelvin
Life Hours:50,000
Wattage:38 Watt
Lumens:2534
Voltage:120
Halogen Equivalent:165 Watt
Light Source:LED
Start Temp. (Min):-40 Deg. F
Start Temp. (Max):110 Deg. F
Sold Separately:QSSI Housing
THD:13%
Length:10.5 in.
Width:10.5 in.
Diameter:2.75 in.
Warranty:5 Years

Description

AC Electronics' CBLK36/350/50 do-it-yourself LED cut-off wall pack lighting fixture retrofit kit is designed to convert QSSI WPR40GRWH metal halide or high pressure sodium fixtures into LED fixtures. This low-energy retrofit kit shines with a stark white light of 5572K and is equivalent to a 165-watt HID fixture. This DIY LED unit can be turned into a complete fixture with QSSI's WPR40GRWH white, die cast aluminum housing with polycarbonate lens (sold separately). The CBLK36/350/50 is approved for use with the Tork 2107 photocell. Some assembly is required.

Features

Kit Includes:

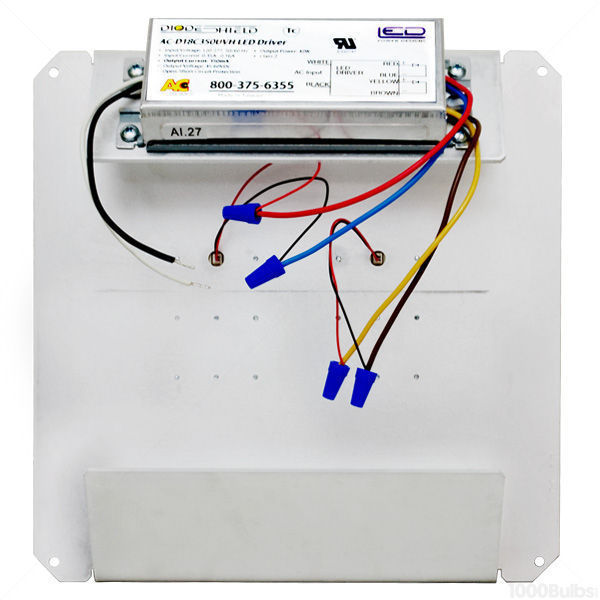

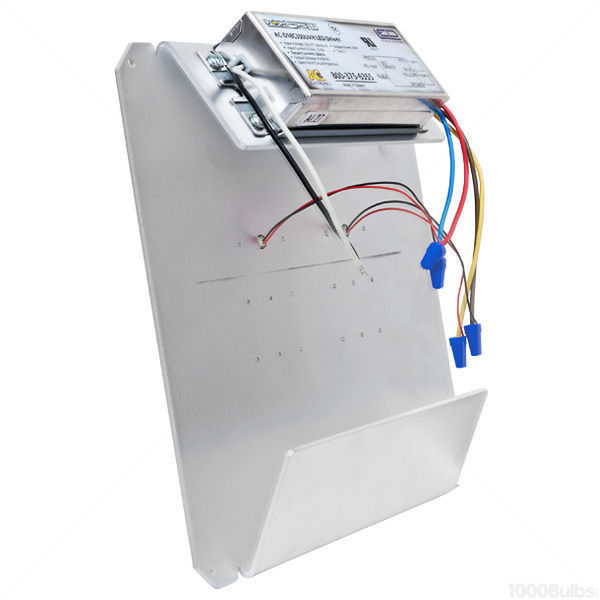

  • Two-Output Channel, Class 2 LED Driver, Model Number: AC-D18C350UVH
  • Aluminum LED Driver Bracket

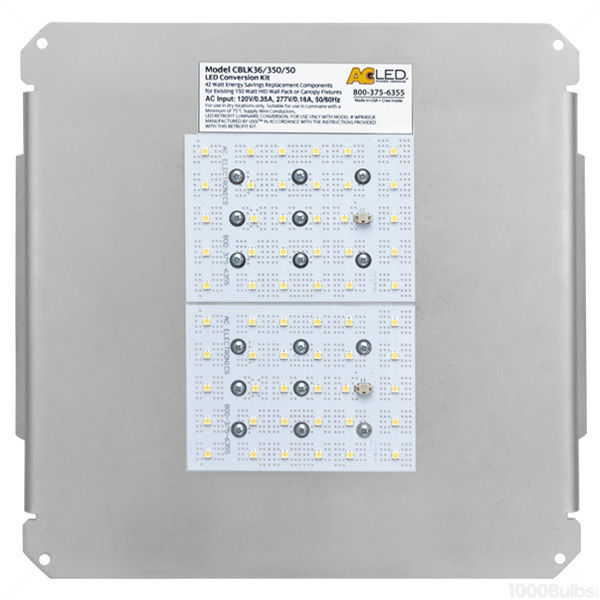

  • 2 PCB LED Array with 60 CREE ML-E LEDs
  • Installation/Assembly Instructions
  • All Required Assembly and Mounting Hardware

Not Included:

  • QSSI WPR40GRWH Fixture Housing
