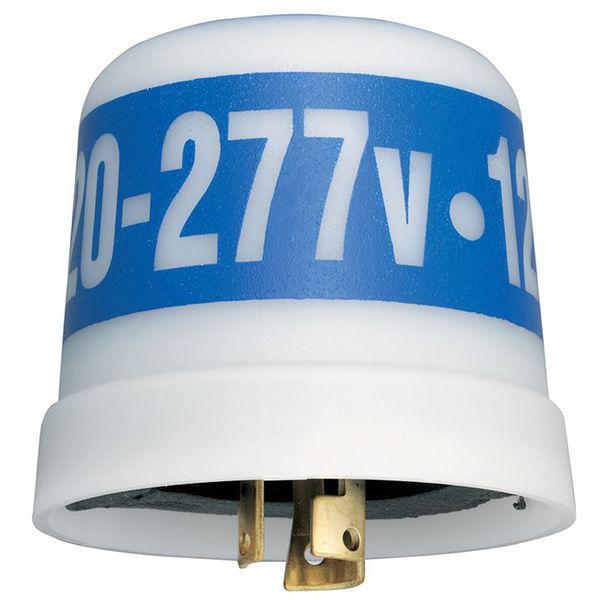

Intermatic EK4536 - Electronic Photo Control
LED Compatible - Thermal Type Photocell - Select Grade Locking Type Mount - 120-277 Volt
Brochures & Spec Sheets
Intermatic EK4536 Brochure
| Brand | Intermatic |
| MPN (Part No.) | EK4536 |
| CSA Listed | Certified |
| UPC | 078275130173 |
| Case Quantity | 6 |
| Color | Translucent with Color Coded Band |
| Mounting | Locking-Type |
| Start Temp. (Max) | 158 Deg. F |
| Start Temp. (Min) | -40 Deg. F |
| Rating | 1800 VA |
| Warranty | 5 Years |
| Life Expectancy | 15 Years |
| Joule Rating | 510 |
| ANSI Code | C136.10 |
| Diameter | 2.97 in. |
| Height | 2.72 in. |
| CA Title 20 | Compliant |
| Voltage | 120/208/240/277 |
| Safety Rating | N/A |
Description
With a life span of up to 10,000 hours, this Intermatic EK4536, locking-type electronic photo control operates at 105 to 305 volts and can be used in roadways, parking lots, and areas with variable sky conditions. Ideal for use with HIDs and Induction fixtures and compatible with LED fixtures totaling 1650 W @ 277 VAC.
- Integral housing and lens to keep moisture out and features UV protection
- Rating of 1000 Watts tungsten and 1800 Watts ballast at 105-305 VAC
- CSA certified and complies with ANSI C136.10
