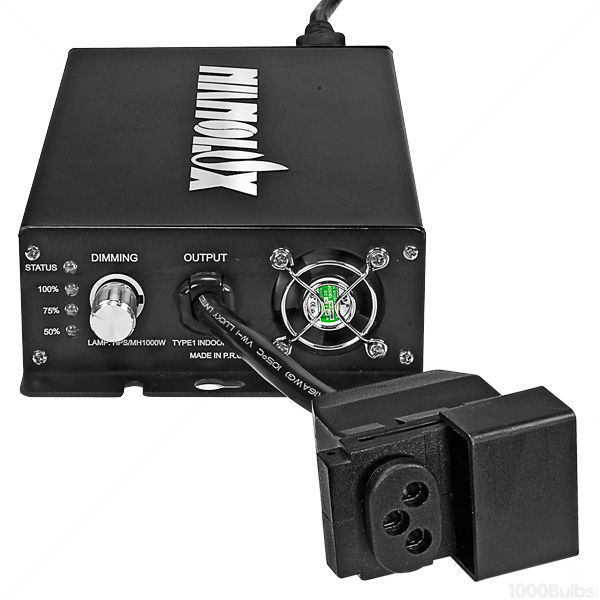

1000 Watt - Nanolux OG Digital Ballast
Dimmable - Operates MH or HPS Lamps - 120-240 Volt - OG-1000W
SKU:
GROW-OG1000W
Details
Description
As the smallest ballast on the market, the Nanolux OG-1000W has taken the quality you’ve come to trust and added smart ballast capabilities by making it compatible with NCCS (Nanolux Cloud Control System). Not only does this allow you to actively monitor the ballast, but it allows you to control other operations including overheat shutoff, voltage surge protection, dim cycles, and slow start/slow finish.
- Random Start technology starts the ballast within a 0-15 second window
- Dims automatically when paired with RTU for high-temperature safety
- Protects against short circuits, circuit over-heating, and lamp failure
- Dimmable to 110, 100, 75, and 50 percent
- Strikes both MH and HPS bulbs
- 1000 Watt maximum output

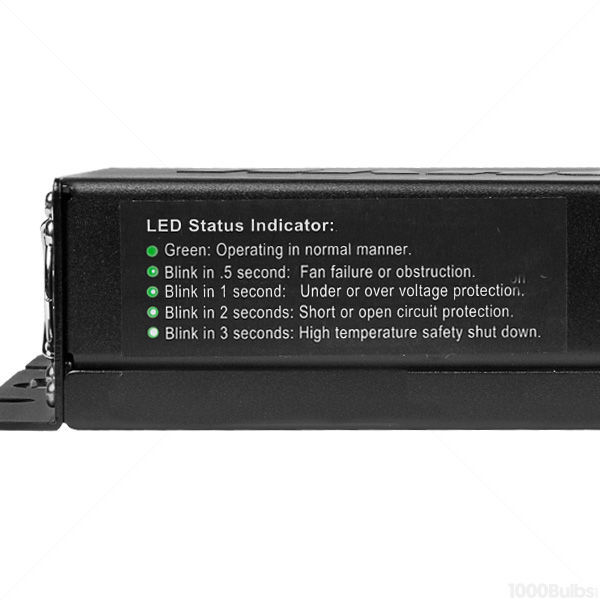

- Diagnostic LED notifications
- Requires a BAASR plug
Brochures & Spec Sheets
Installation Instructions
Product Attributes
| Brand | Nanolux |
|---|---|
| MPN (Part No.) | OG-1000W |
| UPC | 666211186329 |
| Family | Slim Series |
| Dimmable | Yes |
| Bulb Type | High Pressure Sodium/Metal Halide |
| Maximum Wattage | 1000 Watt |
| Ratings and Certifications | ETL |
| CE Certified | Yes |
| Ballast Type | Electronic |
| Bulbs Included | No |

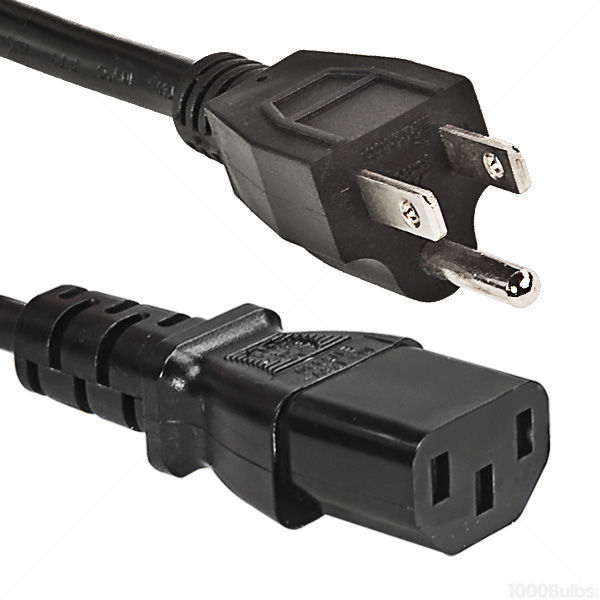

| Cord Length | 6 ft. |
|---|---|
| Input Voltage | 110V/120V/207V/208V/220V/240V |
| Operating Temp | -22 Deg. to 122 Deg. F |
| Power Factor | 99% |
| THD | 10% |
| Length | 9.3 in. |
| Height | 2.1 in. |
| Width | 5.3 in. |
| Weight | 3.15 lb. |
| Case Quantity | 10 |
