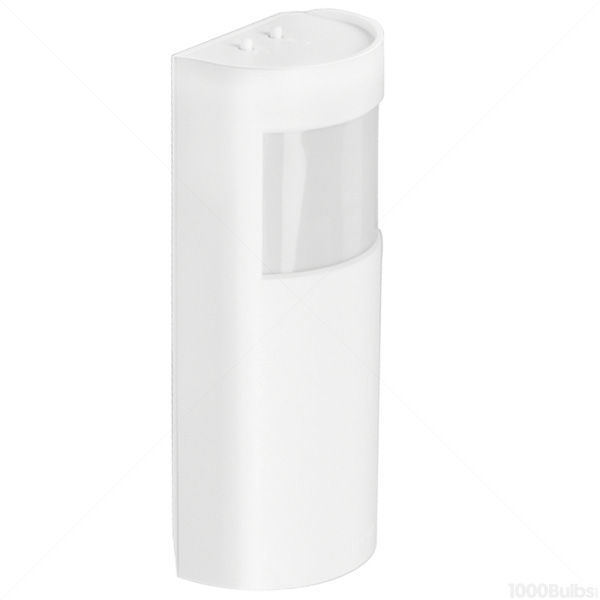

Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor

For use with Lutron Wireless Controls - 3000 sq. ft. Coverage - White - 3V DC

Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor Thumbnail
Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor Thumbnail
Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor Thumbnail
Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor Thumbnail
Lutron LRF2-VHLB-P-WH - 180 Deg. Wireless Vacancy Hallway Sensor Thumbnail

Lutron's Radio Powr Savr LRF2-VHLB-P-WH hallway vacancy sensor uses passive infrared sensors that automatically control the lights in an area. With a 180-degree field, these sensors detect heat from occupants moving within an area to determine when the space is occupied. Save on time and energy with the easy-to-install, Lutron LRF2-VHLB-P-WH.

  • Transmits radio frequency signals to dimming and switching devices to turn the lights on or off
  • White ceiling sensor uses XCT technology for fine motion detection
  • Ideal for office spaces, bathrooms, and children's bedrooms
  • Designed to provide up to 10 years of battery life
  • CA Title 24 and RoHS complaint

›  View Specs & Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: LUT-LRF2VHLBPWH

Lutron's Radio Powr Savr LRF2-VHLB-P-WH hallway vacancy sensor uses passive infrared sensors that automatically control the lights in an area. With a 180-degree field, these sensors detect heat from occupants moving within an area to determine when the space is occupied. Save on time and energy with the easy-to-install, Lutron LRF2-VHLB-P-WH.

  • Transmits radio frequency signals to dimming and switching devices to turn the lights on or off
  • White ceiling sensor uses XCT technology for fine motion detection
  • Ideal for office spaces, bathrooms, and children's bedrooms
  • Designed to provide up to 10 years of battery life
  • CA Title 24 and RoHS complaint

Field of View 180 Deg.
Family Radio Powr Savr
Brand Lutron
MPN (Part No.) LRF2-VHLB-P-WH
UPC 27557823616
Voltage 3
Amperage 14 mA
Color White
Coverage 3,000 sq. ft.
Width 1.8 in.
Height 4.35 in.
Motion Sensor Type Vacancy
Case Quantity 24
CA Title 24 Compliant
Motion Detection PIR (Passive Infrared)
Battery Life 10 Years
Warranty 1 Year
Mounting Wall Mount

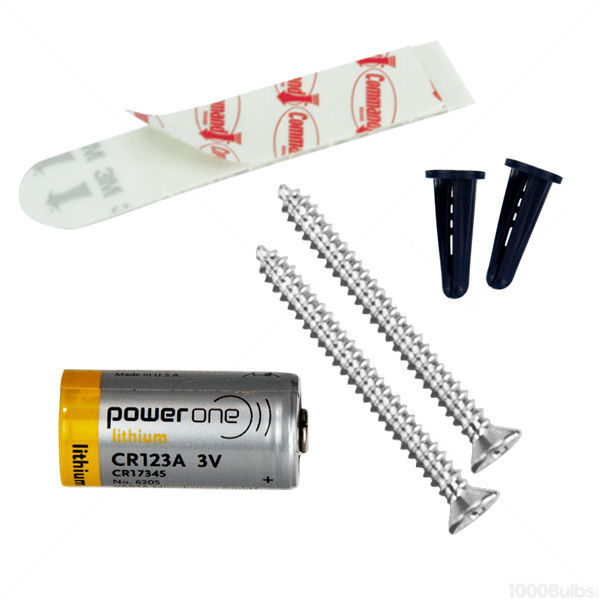

Battery Type (1) CR123 Lithium Battery
Time Delay 1, 5, 15, or 30 min.
Sold Separately Pico Wireless Controls
Safety Rating UL Indoor
CSA Listed No
Depth 1.35 in.

Description

Lutron's Radio Powr Savr LRF2-VHLB-P-WH hallway vacancy sensor uses passive infrared sensors that automatically control the lights in an area. With a 180-degree field, these sensors detect heat from occupants moving within an area to determine when the space is occupied. Save on time and energy with the easy-to-install, Lutron LRF2-VHLB-P-WH.

  • Transmits radio frequency signals to dimming and switching devices to turn the lights on or off
  • White ceiling sensor uses XCT technology for fine motion detection
  • Ideal for office spaces, bathrooms, and children's bedrooms
  • Designed to provide up to 10 years of battery life
  • CA Title 24 and RoHS complaint
