Lutron LRF2-VKLB-P-WH - 90 Deg. Wireless Vacancy Corner Mount Sensor
For use with Lutron Wireless Controls - 2500 sq. ft. Coverage - White - 3V DC
SKU:
LUT-LRF2VKLBPWH
Details
Description
Lutron's Radio Powr Savr LRF2-VKLB-P-WH corner mount vacancy sensor uses passive infrared sensors that automatically control the lights in an area. With a 90-degree field, these sensors detect heat from occupants moving within an area to determine when the space is occupied. Save on time and energy with the easy-to-install, Lutron LRF2-VKLB-P-WH.
- Transmits radio frequency signals to dimming and switching devices to turn the lights on or off
- White ceiling sensor uses XCT technology for fine motion detection
- Ideal for office spaces, bathrooms, and children's bedrooms
- Designed to provide up to 10 years of battery life
- CA Title 24 and RoHS complaint
Brochures & Spec Sheets
Lutron LRF2-VKLB-P-WH Spec Sheet
Product Attributes
| Brand | Lutron |
|---|---|
| MPN (Part No.) | LRF2-VKLB-P-WH |
| UPC | 27557823593 |
| Family | Radio Powr Savr |
| CA Title 24 | Compliant |
| Color | White |
| Voltage | 3 |
| Amperage | 14 mA |
| Battery Life | 10 Years |
| Battery Type | (1) CR123 Lithium Battery |
| Coverage | 2,500 sq. ft. |

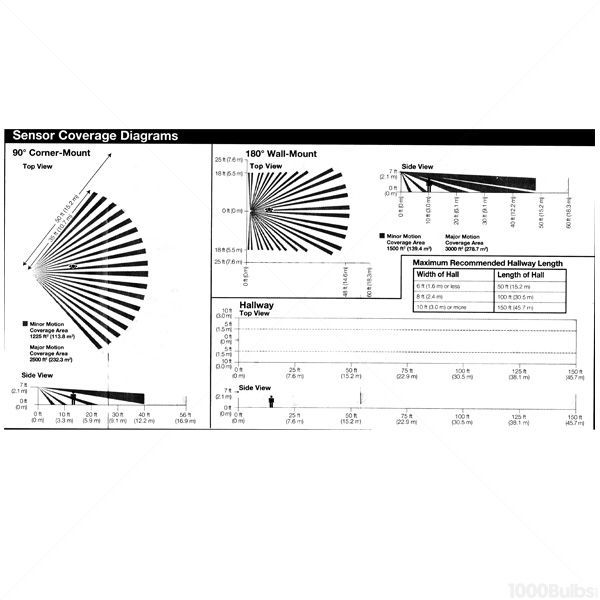

| Field of View | 90 Deg. |
| Mounting | Wall Mount |
|---|---|
| Motion Detection | PIR (Passive Infrared) |
| Motion Sensor Type | Vacancy |
| Sold Separately | Pico Wireless Controls |
| Time Delay | 1, 5, 15, or 30 min. |
| CSA Listed | No |
| Height | 4.35 in. |
| Width | 1.8 in. |
| Depth | 1.35 in. |
| Warranty | 1-Year Limited |
| Case Quantity | 24 |
