Lutron Maestro MS-VPS5M-AL - Almond - Passive Infrared (PIR)
Vacancy Sensor - 5 Amp Max. - 120 Volt
SKU:
LUT-MSVPS5MAL
Details
Description

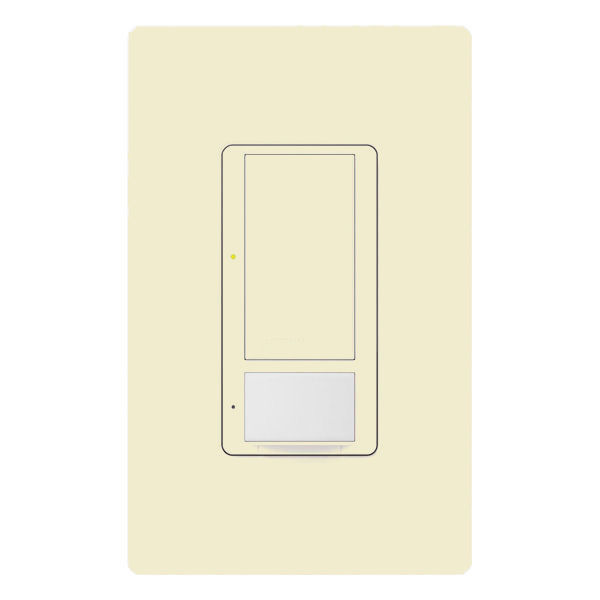

The Lutron Maestro MS-VPS5M-AL passive infrared vacancy sensor saves on energy consumption by automatically turning the lights off when a room is unoccupied. This almond finished Maestro vacancy sensor is ideal for small rooms such as bedrooms, kids' rooms, or TV rooms. Companion switch MA-AS, MSC-AS, MA-AS-277, or MSC-AS-277 (sold separately) is required for multi-location installations.
- Features exclusive XCT technology for fine motion detection within a 180-degree field-of-view
- Manually turn lights on with tap switch/Passive infrared sensor automatically turns lights off
- Coordinating almond Claro wallplates sold separately
- Up to 9 companion switches may be connected
- Operates a maximum of 5 amps at 120 volts
- Features a tamper-resistant sensor lens
- Neutral wire is not required
Brochures & Spec Sheets
Lutron MS-VPS5M-AL Spec Sheet
Product Attributes
| Brand | Lutron |
|---|---|
| MPN (Part No.) | MS-VPS5M-AL |
| UPC | 27557983587 |
| Family | Maestro |
| Color | Almond |
| Voltage | 120 |
| Amperage | 5 Amps |
| Connection | Ground |
| Coverage | 900 sq. ft. |
| Field of View | 180 Deg. |
| Load Type | CFL/ELV/Fans/FL/Halogen/Incandescent/LED/MLV |
| Motion Detection | PIR (Passive Infrared) |
|---|---|
| Motion Sensor Type | Vacancy |
| Operation | Multi-Location/Single Pole |
| Sold Separately | Wall Plate |
| Switch Type | Tap Switch |
| Time Delay | 1, 5, 15, or 30 min. |
| CSA Listed | No |
| Height | 4.7 in. |
| Width | 2.9 in. |
| Warranty | 5-Year Limited |
| Case Quantity | 24 |
