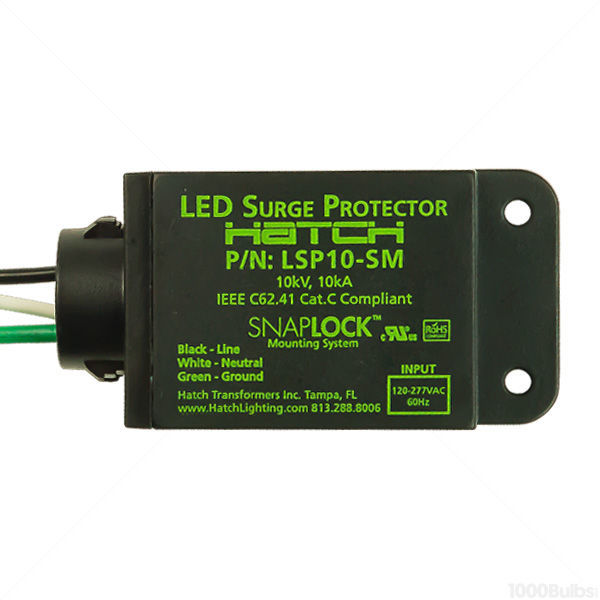

Hatch LSP10-SM - LED Surge Protector

Single (Split) Phase - Type 4 SPD - Hardwired - 10kV, 10kA Max. Capacity - 120-277 Volt - NEMA 3R Indoor/Outdoor Enclosure

Hatch LSP10-SM - LED Surge Protector Thumbnail

Provide an additional level of security against powerline disturbances with this Hatch LSP10-SM surge protection device. Able to withstand a maximum of 10,000 volts and 10,000 amps, this type 4 SPD (surge proctection device) is recommended for industrial, commercial, and residential applications.

  • For LED drivers and fixtures; can also be used with electronic fluorescent and HID ballasts
  • Easy SnapLock mounting for one-hand installation to a 3/4-inch electrical knockout
  • Surge location rated category C3 (highest rating in IEEE / ANSI C62.41)
  • Features a thermally protected transient over-voltage circuit
  • 3-wire, single (split) phase surge protector
  • Protects AC electrical current
  • UL 1449 3rd Edition listed

View More Details

Product Image
$18.49 ea.
An error has occurred
SKU: BH-LSP10SM

Lighting can be confusing! Expert Help - Call Now
1-800-624-4488

Provide an additional level of security against powerline disturbances with this Hatch LSP10-SM surge protection device. Able to withstand a maximum of 10,000 volts and 10,000 amps, this type 4 SPD (surge proctection device) is recommended for industrial, commercial, and residential applications.

  • For LED drivers and fixtures; can also be used with electronic fluorescent and HID ballasts
  • Easy SnapLock mounting for one-hand installation to a 3/4-inch electrical knockout
  • Surge location rated category C3 (highest rating in IEEE / ANSI C62.41)
  • Features a thermally protected transient over-voltage circuit
  • 3-wire, single (split) phase surge protector
  • Protects AC electrical current
  • UL 1449 3rd Edition listed

Brochures & Spec Sheets

Brand Hatch
MPN (Part No.) LSP10-SM
CSA Listed No
UPC 797281690012
Housing Polycarbonate
Load Type Electronic Ballast/LED Driver
Mounting Side Lead with Feet/SnapLock
Type 4 SPD
Warranty No Warranty
Wire Gauge 18 AWG
NEMA 3R Indoor/Outdoor
Depth 2.9 in.
Height 1.2 in.
Width 1.52 in.
Lead Length 6 in.
Surge Capacity 10kA
Suppression MOV
Operating Temp 85°C
Voltage 120
Safety Rating UL Indoor/Dry Location

Description

Provide an additional level of security against powerline disturbances with this Hatch LSP10-SM surge protection device. Able to withstand a maximum of 10,000 volts and 10,000 amps, this type 4 SPD (surge proctection device) is recommended for industrial, commercial, and residential applications.

  • For LED drivers and fixtures; can also be used with electronic fluorescent and HID ballasts
  • Easy SnapLock mounting for one-hand installation to a 3/4-inch electrical knockout
  • Surge location rated category C3 (highest rating in IEEE / ANSI C62.41)
  • Features a thermally protected transient over-voltage circuit
  • 3-wire, single (split) phase surge protector
  • Protects AC electrical current
  • UL 1449 3rd Edition listed
