2 x 4 LED Recessed Troffer
3900 Lumens - 31.9 Watt - 3500 Kelvin - Equal to a 2-Lamp T8 Fluorescent Troffer - Opaque Smooth Lens - 120-277V - Eaton 24SR-LD2-39-C-UNV-L835-CD1-U
SKU:
COOP-1112373
Details
Description

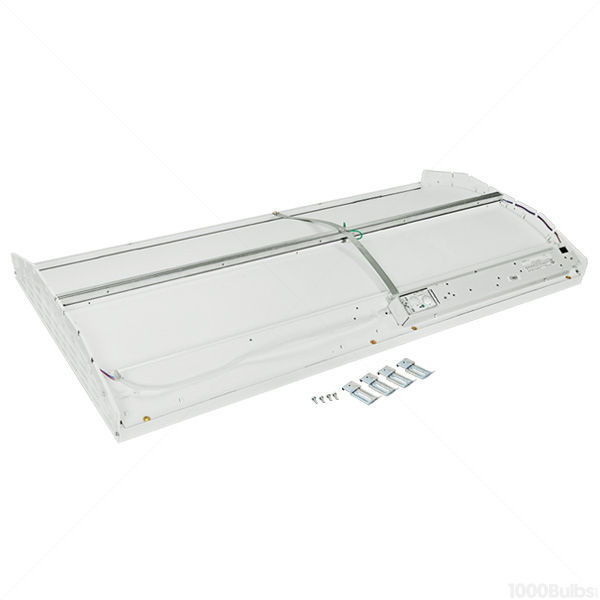

Bring a new dimension to boring commercial spaces with the Eaton 24SR-LD2-39-C-UNV-L835-CD1-U 2 x 4 LED troffer. With a shallow 4.75-inch one-piece housing and optical-grade acrylic lens, this 31.9-watt SkyRidge series luminaire uses WaveStream technology providing uniform light combined with the high luminous efficacy and long life of LEDs.
- Includes a standard 0-10V continuous dimming driver that works with any 0-10V control/dimmer
- Provides energy savings in excess of 60% compared to traditional fluorescent troffers
- Features a curved, high-reflectance white reflector for luminous uniformity
- Does not include a factory-installed integrated sensor system
- Emits an exceptional halogen white color temperature
- Great for new construction or retrofit installations
- Universal voltage
Brochures & Spec Sheets
Eaton 24SR-LD2-39-C-UNV-L835-CD1-U Spec Sheet
Product Attributes
| Brand | Eaton |
|---|---|
| MPN (Part No.) | 24SR-LD2-39-C-UNV-L835-CD1-U |
| UPC | 80083753468 |
| Lighting Technology | LED |
| Family | SkyRidge |
| Dimmable | Yes |
| DLC Listed | No |
| CRI | Standard CRI |
| Color | Halogen Color |
| Color Temperature | 3500 Kelvin |
| Life Hours | 100,000 |
| Wattage | 31.9 Watt |
| LPW | 123 |
|---|---|
| Lumens | 3,940 |
| Voltage | 120/208/240/277 |
| Finish | White |
| Housing | Aluminum |
| Mounting | Recessed |
| Lens | Clear |
| Length | 47.91 in. |
| Height | 4.7 in. |
| Weight | 24 lbs. |
| Warranty | 5-Year Limited |
